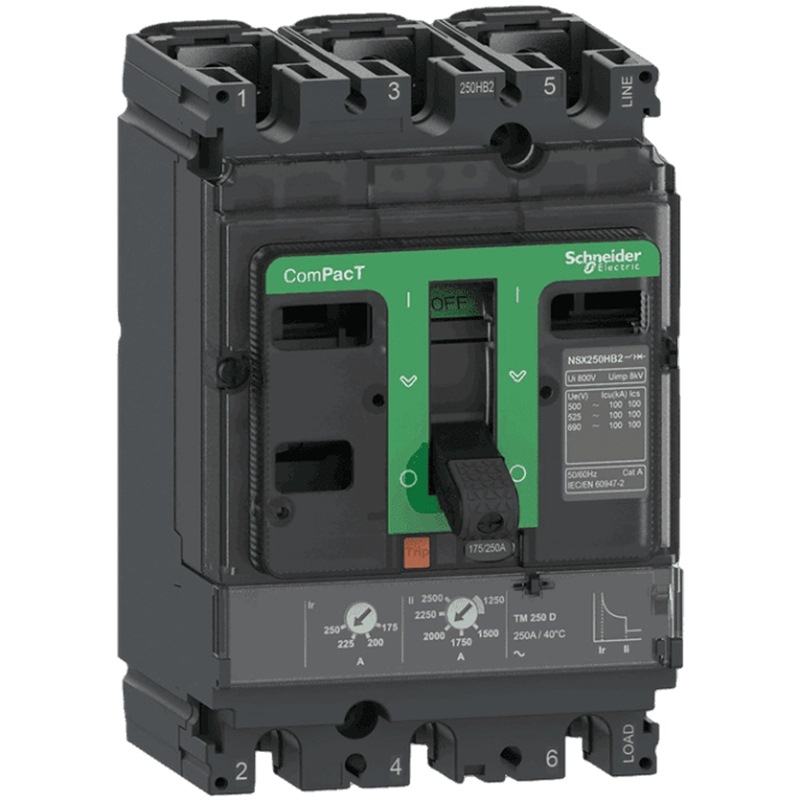

SCHNEIDER COMPACT NSX160F MCCB BREAKER, 36KA AT 415VAC, 3P 3D, TMD 100A

SCHNEIDER ELECTRIC C16F3TM160
UOM: PC
  • Price w/GST:
  • S$414.76

Free Delivery Above $120 (Member Only), Arrives by Thursday, 22 Oct
Item unavailable at Ubi Trade Centre>Check Other Stores

This ComPacT NSX160F is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity.

It is an optimal choice for all standard and specific applications.

The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz.

The operational voltage is 690VAC 50/60Hz.

This product embeds a 160A rating thermal-magnetic trip unit (TMD).

TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection.

This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories.

It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX160F is part of Schneider Electric EcoStruxure Power architecture.
Breaking Capacity 10 kA at 600 V AC 50/60 Hz conforming to UL 508
  22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
  30 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
  35 kA at 480 V AC 50/60 Hz conforming to UL 508
  35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
  36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
  8 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
  85 kA at 240 V AC 50/60 Hz conforming to UL 508
  85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Breaking Capacity Code F 36 kA 415 V AC
Contacts Type And Composition 160 A at 40 °C
Control Type toggle
Product Or Component Type circuit breaker
Range Of Product ComPacT NSX100...250 new generation
Trip Unit Name TM-D
[Ie] Rated Operational Current toggle
[Ue] Rated Operational Voltage 690 V AC 50/60 Hz
Device Short Name NSX160F
EAN13 3606481997104
Mounting Support backplate
Network Type AC
Protected Poles Description 3t
Range ComPacT new generation
Range Name ComPacT NSX (2021)
Suitability For Isolation yes conforming to EN/IEC 60947-2
Trip Unit Protection Functions LI
Trip Unit Technology thermal-magnetic
Utilisation Category category A
COMPLEMENTARY
Communication Network Type 690 V AC 50/60 Hz
Current Transformer Type F 36 kA 415 V AC
Interlocked Device 10 kA at 600 V AC 50/60 Hz conforming to UL 508
  22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
  30 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
  35 kA at 480 V AC 50/60 Hz conforming to UL 508
  35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
  36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
  8 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
  85 kA at 240 V AC 50/60 Hz conforming to UL 508
  85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Product Name ComPacT NSX new generation
[Ics] Rated Service Breaking Capacity 22 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2
  30 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
  35 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
  36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
  8 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
  85 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
[In] Rated Current 160 A at 40 °C
Compatibility Code NSX160
Connection Pitch 35 mm
Depth 86 mm
Device Application distribution
Downside Connection front
Earth-leakage Protection without
Electrical Durability 15000 cycles at 690 V In/2
  20000 cycles at 440 V In
  40000 cycles at 440 V In/2
  7500 cycles at 690 V In
Height 161 mm
Long Time Delay Adjustment Type fixed
Long Time Pick-up Adjustment Range 0.7...1 x In
Long Time Pick-up Adjustment Type Ir adjustable
Mechanical Durability 40000 cycles
Mounting Mode fixed
Net Weight 2.2 kg
Network Frequency 50/60 Hz
Number Of Slots 5 slot(s)
Protection Type I : for short-circuit protection (magnetic)
  L : for overload protection (thermal)
Short-time Delay Adjustment Type fixed
Short-time Pick-up Adjustment Type Isd fixed
Trip Unit Rating 160-160 A at 40 °C
Upside Connection front
Width 105 mm
[Isd] Short-time Pick-up Adjustment Range 1250 A
[tr] Long-time Delay Adjustment Range 120-400 s at 1.5 x In
  15-15 s at 6 x Ir
[Uimp] Rated Impulse Withstand Voltage 8 kV
[Ui] Rated Insulation Voltage 800 V AC 50/60 Hz
ENVIRONMENT
Ambient Air Temperature For Operation -25-70 °C
Ambient Air Temperature For Storage -50-85 °C
Electrical Shock Protection Class class II
IK Degree Of Protection IK07 conforming to IEC 62262
IP Degree Of Protection IP40 conforming to IEC 60529
Operating Altitude 0...2000 m without derating
  2000 m...5000 m with derating
Overvoltage Category class II
Pollution Degree 3 conforming to IEC 60664-1
Product Certifications CCC
  EAC
  Marine
Relative Humidity 0-95 %
Standards EN/IEC 60947
OTHER
Earth Leakage Current TM-D
Poles Description 3P
[Us] Rated Supply Voltage ComPacT NSX100...250 new generation
