WINDSPEED PORTABLE MAGNETIC DRILLING MACHINE-WS3500M

  • bvseo_sdk, net_sdk, 2.2.0.2
  • getAggregateRating, method:CLOUD, 546ms
  • REVIEWS, PRODUCT
  • bvseo-msg: Execution timed out, exceeded 500ms;
WIND SPEED WS3500M
UOM: UNIT
Price w/GST:
$963.00

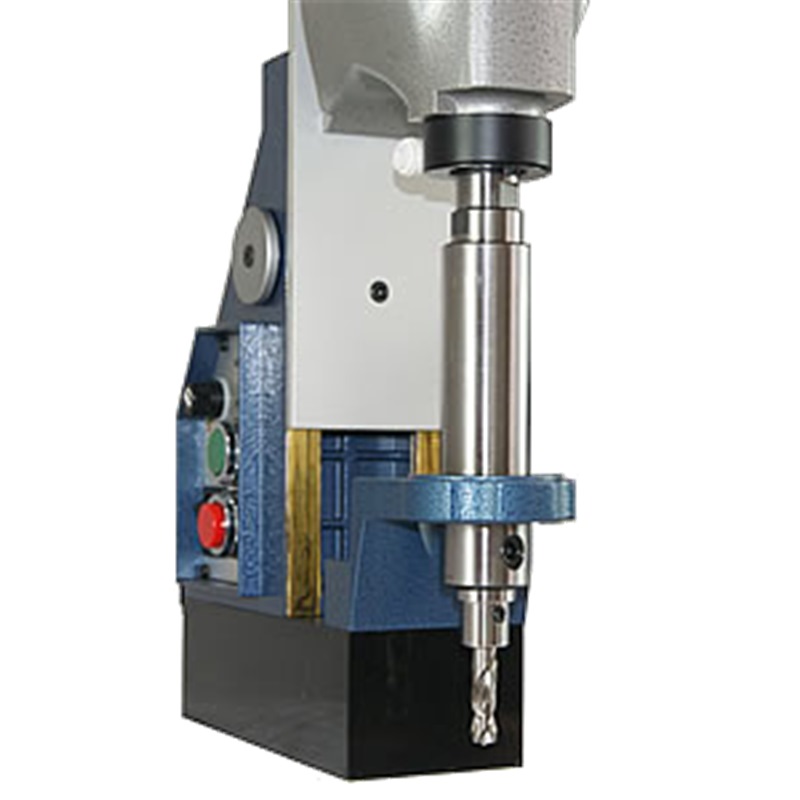

WINDSPEED PORTABLE MAGNETIC DRILLING MACHINE-WS3500M

Model WS3500M
Voltage (Single Phase) 220 ~ 240V AC 50/60 hz
Motor Rated Power Consumption 1850W
Motor Rated Ampere 5A
No-load Speed (2 speeds) 780rpm
Total Adaptor Inner Diameter 19.05 mm
Adjustable in height for max. stroke 100mm
Coolant Supply via Tool Holder
Magnet Power Consumption 38 W
Magnet Adhesion 7350 N/ 750 kgf
Magnet Dimensions 188 x 86 x56mm
Weight 14kg
Hole-Cutting Capacity
Annular Cutter Out Diameter: 13-35mm Plate Thickness 9-50mm

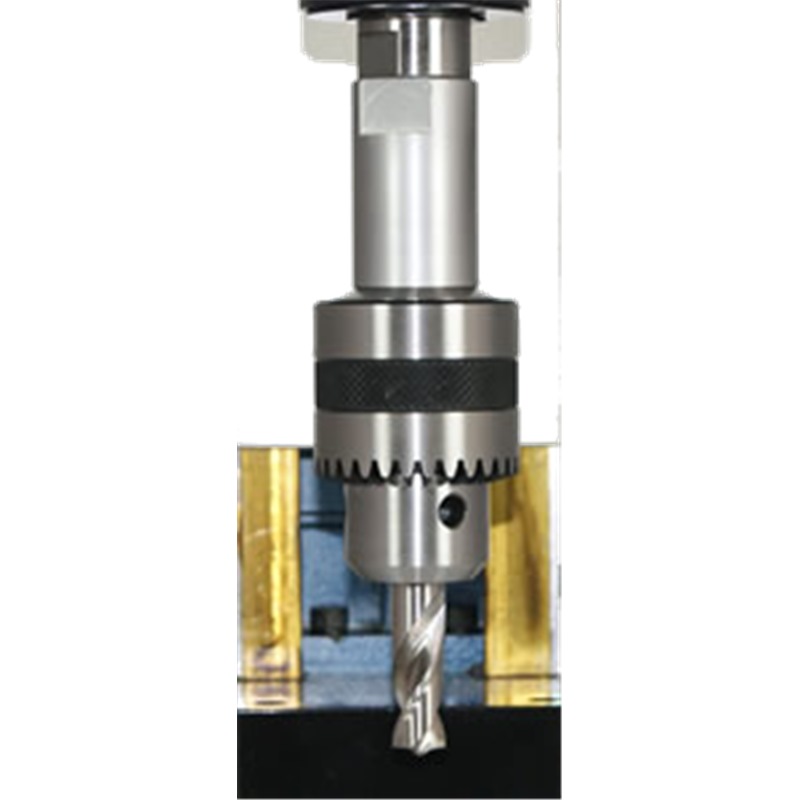

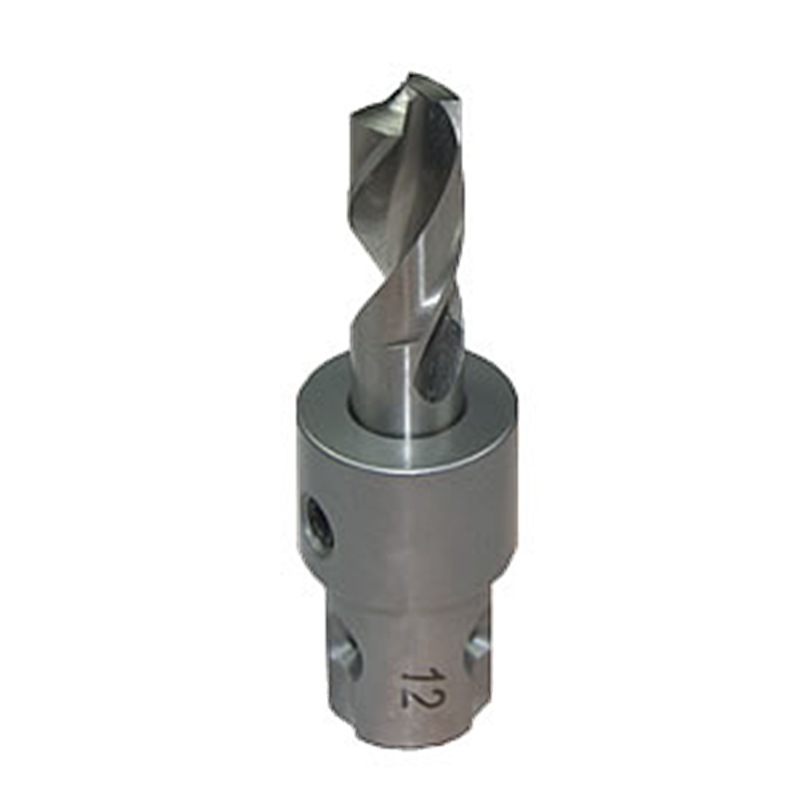

Twist Drill Max. Dia. 13mm
1xPilot Pin 8.0 x 91mm
1xDouble Open End Wrench
1x2.5mm Hex Key Wrench
1x6.0mm Hex Key Wrench
3xOperating Handle
1xLifting Handle
1xFuse Block
1xCarbon Brush
1xFixed Screw
