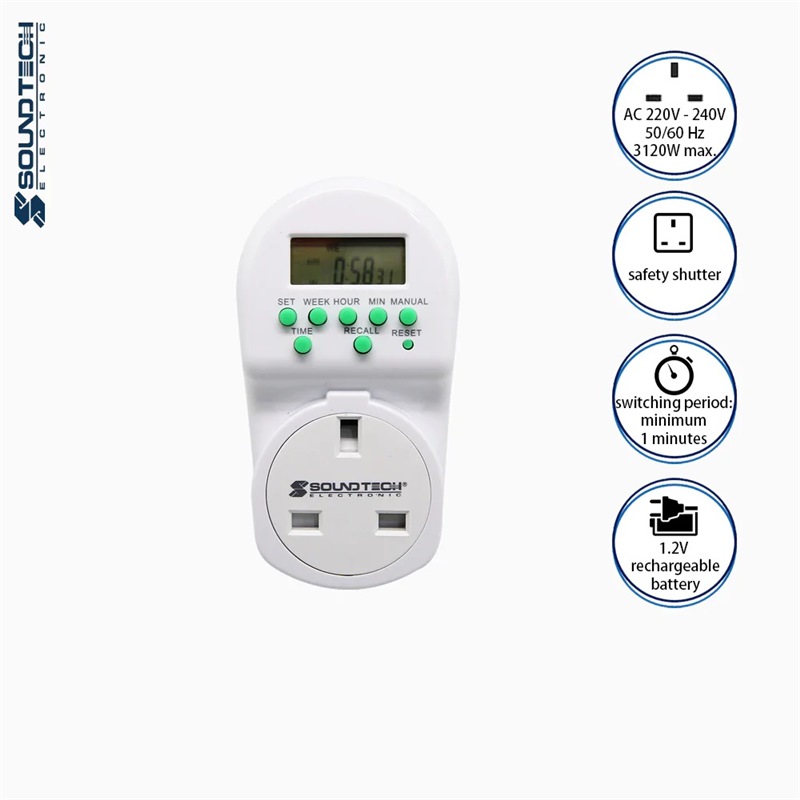

SOUNDTECH DIGITAL TIMER SWITCH MDT-268

Timer Controls

1. LCD display area

2. WEEK button - set the day of the week

3. HOUR button - hour setting

4. CLOCK button - real-time setting

5. PROG button - push and release to set or change programmed on and off times

6. ON/ AUTO/ OFF button - push and release to manually switch AUTO OFF, ON, AUTO ON, or OFF at any time.

7. R button - clear all the programs and real time with a sharp object such as a pencil

8. MINUTE button - minute setting

9. R/RECALL button - clear a program setting

LCD display area introduction

1. Real-time

2. MO TU ... Day of the week

3. Mode-AUTO OFF,ON, AUTO ON, OFF

4. SUMMER time

Setting Present Time

1. Press 'CLOCK' and 'WEEK' at the same time to get the correct day

2. Press 'CLOCK' and 'HOUR' at the same time to adjust hour time

3. Press 'CLOCK' and 'MINUTE' at the same time to set the minute

4. Press 'CLOCK' for 3 seconds to choose SUMMER TIME or not. One hour will be added under SUMMER state.

Initial Operation

The timer uses rechargeable batteries that need charging before the timer functions can work. Before attempting any programming, plug the timer into a power outlet and switch on. Allow around 10 minutes for the initial charge.

Use a pointed object, such as a pen or pencil, to clear the memory by pushing the R button.

Programming

1. Press "PROG" button once, the display will now show "ON 1" mode.

2. Press "WEEK","HOUR","MINUTE" respectively to set the days, hour and minute you

• Each separate day

• All 7 day of the week

• Working days only

• Weekend

• Monday to Saturday

• Monday, Wednesday, Friday

• Tuesday, Thursday, Saturday

• Monday, Tuesday, Wednesday

• Thursday, Friday, Saturday

3. Once the "ON" time is set, Press "PROG" button once. The display will now show "OFF 1".

4. If you wish to clear a programme setting, push the "R/RECALL" button, Pushing the "R/RECALL" button again will reinstate the setting. Only the displayed setting will be affected.

5. Repeat the step 1 to 3 for ON2/ OFF2,... ..., ON20/ OFF20.

NOTE

No operation about 20 seconds, it will get back to the Real-time display automatically.

Override

Press the "AUTO/ON/OFF" to set the timer to your desired operation mode. Each push of this button will cycle through the following settings which are shown on the display: AUTO OFF -> ON -> AUTO ON -> OFF.

AUTO OFF: Timer is switched off and will switch ON at next programmed ON time.

ON: Override all programming and switches the timer permanently ON.

AUTO ON: The timer is switched ON and will be switched OFF at the next programmed OFF time.

OFF: All programming is overridden and the time is switched permanently OFF.

Warnings

• For indoor use only

• Connection must be to the voltage requirements as specified in the rating label located on the product

• Do not immerse timer in any liquid, expose to weather, moisture, the temperature is too high or too low, or where is easy to collided and shake

• Do not disassemble this timer by yourself

• Clean the housing and the LCD with soft cloth, don't wash it with the corrosive chemical reagent and suds.
