* Click to enlarge, images are for illustrative purposes only

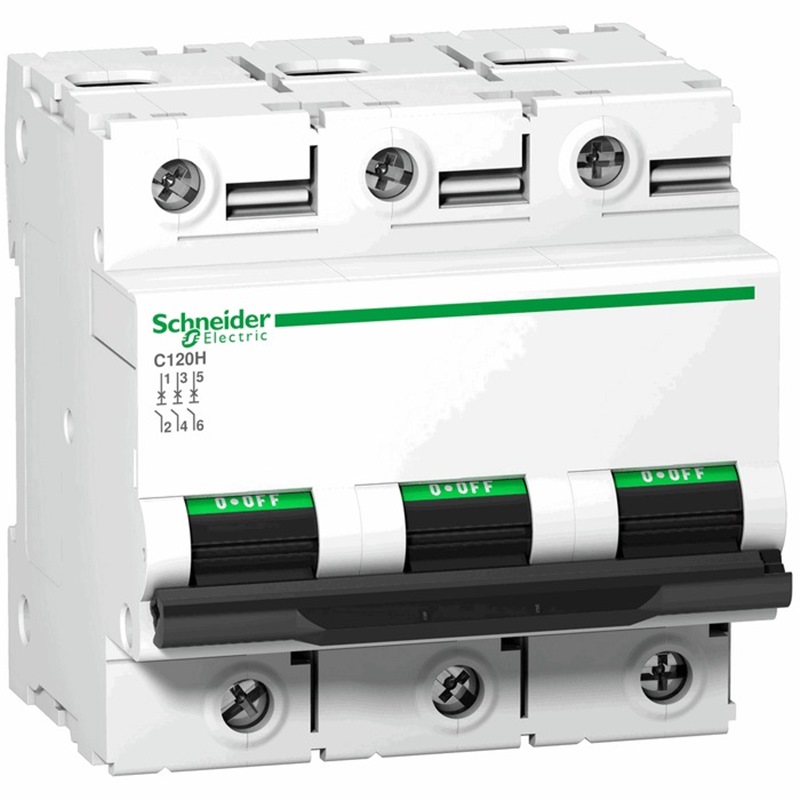

SCHNEIDER MINIATURE CIRCUIT-BREAKER (MCB), ACTI9 C120H, 3P, C, 100A

A9N18469

UOM: PC

Price w/GST:
S$128.67

Buy $100.00, Get Free Gift

Find In Store

Add to Wishlist Share

Free Delivery Above $100 (Member Only), Arrives by Friday, 16 May
Item unavailable at Ubi Trade Centre>Check Other Stores

C120H

Circuit breaker

C curve.

Label : C120

Range of product : C120

[In] rated current : 100 A at 30 °C

Network type : AC

Trip unit technology : thermal

Magnetic

Curve code : C

Breaking capacity code : H

Breaking capacity : N/A, N/A, N/A, N/A, N/A

Range : Acti 9

Suitability for isolation : yes conforming to IEC 60947-2

Product name : C120

Product or component type : miniature circuit-breaker

Device short name : C120H

Device application : distribution

Poles description : 3P

Number of protected poles : 3

Range Presentation-

Range Benefits : Quality without boundaries

The C120 circuit-breaker, derived directly from the C60, is recognised in over 100 countries for its quality and the breadth of its range, making it an indispensable component for developing low voltage installations with complete peace of mind.

Range Application Presentation :

Protection of electrical circuits in all industrial and tertiary buildings

Breaking Capacity	10 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
	15 kA Icu at
	15 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
	15000 A Icn at 230...400 V AC 50/60 Hz conforming to EN/IEC 60898-1
	30 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
Breaking Capacity Code	H
Contacts Type And Composition	100 A at 30 °C
Control Type	toggle
Product Or Component Type	miniature circuit-breaker
Range Of Product	C120
[Ie] Rated Operational Current	toggle
[Ue] Rated Operational Voltage
	220...240 V AC 50/60 Hz
	230...400 V AC 50/60 Hz
	380...415 V AC 50/60 Hz
	440 V AC 50/60 Hz
Curve Code	C
Device Short Name	C120H
EAN13	3606480380402
Mounting Support	35 mm symmetrical DIN rail
Network Type	AC
Number Of Protected Poles	3
Range	Acti 9
Range Name	Acti 9 C120
Suitability For Isolation	yes conforming to IEC 60947-2
Trip Unit Technology	thermal-magnetic
COMPLEMENTARY
Communication Network Type
	220...240 V AC 50/60 Hz
	230...400 V AC 50/60 Hz
	380...415 V AC 50/60 Hz
	440 V AC 50/60 Hz
Current Transformer Type	H
Interlocked Device	10 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
	15 kA Icu at
	15 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
	15000 A Icn at 230...400 V AC 50/60 Hz conforming to EN/IEC 60898-1
	30 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
Product Name	C120
[Ics] Rated Service Breaking Capacity	15 kA 100 % conforming to EN/IEC 60947-2 -
	15 kA 50 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz
	5 kA 50 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz
	7.5 kA 50 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz
	7500 A 50 % conforming to EN/IEC 60898-1 - 230...400 V AC 50/60 Hz
[In] Rated Current	100 A at 30 °C
9 Mm Pitches	9
Colour	white
Comb Busbar And Distribution Block Compatibility	no
Compatibility Code	C120
Connections - Terminals	tunnel type terminals1.5-35 mm² flexible
	tunnel type terminals1-50 mm² rigid
Contact Position Indicator	yes
Depth	73 mm
Device Application	distribution
Earth-leakage Protection	separate block
Electrical Durability	5000 cycles conforming to IEC 60947-2
Height	81 mm
Limitation Class	3 conforming to EN/IEC 60947-2
Local Signalling	ON/OFF indication
Magnetic Tripping Limit	5...10 x In
Market Segment	residential
	small commercial
Mechanical Durability	20000 cycles
Mounting Mode	clip-on
Net Weight	0.615 kg
Network Frequency	50/60 Hz
Tightening Torque	3.5-3.5 N.m
Width	81 mm
Wire Stripping Length	15 mm
[Uimp] Rated Impulse Withstand Voltage	6 kV conforming to EN/IEC 60947-2
[Ui] Rated Insulation Voltage	500 V AC 50/60 Hz conforming to EN/IEC 60947-2
ENVIRONMENT
Ambient Air Temperature For Operation	-30-60 °C
Ambient Air Temperature For Storage	-40-70 °C
IP Degree Of Protection	IP20 conforming to IEC 60529
Operating Altitude	2000 m
Overvoltage Category	IV
Pollution Degree	3 conforming to IEC 60947-2
Product Certifications	EAC
Relative Humidity	95-95 % at 55-55 °C
Standards	EN/IEC 60898-1
	EN/IEC 60947-2
Tropicalisation	2 conforming to IEC 60068-1
OTHER
Poles Description	3P
[Us] Rated Supply Voltage	C120
