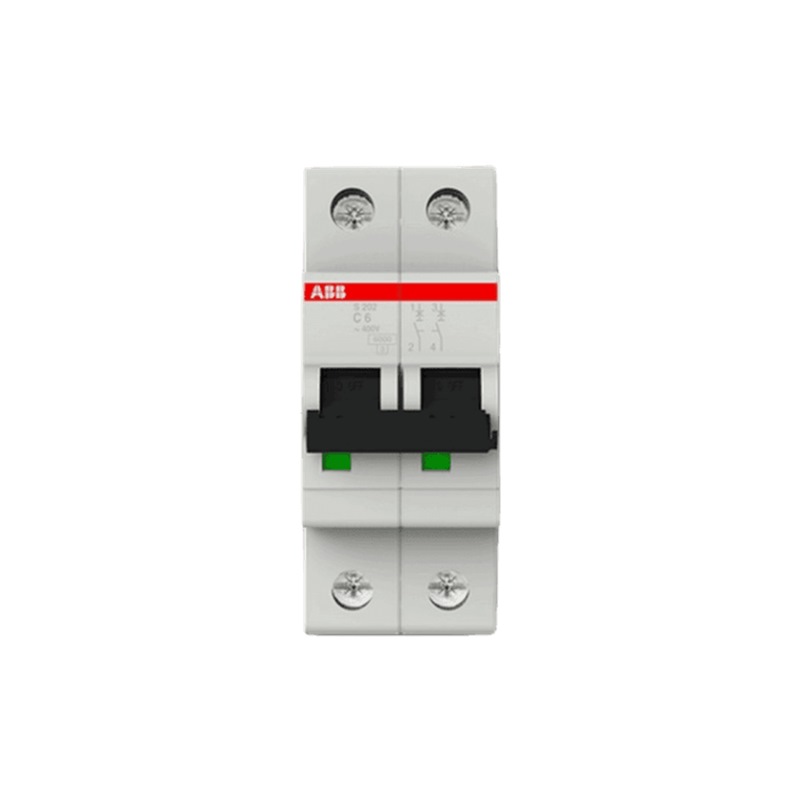

ABB MINIATURE CIRCUIT BREAKER (MCB) S202-C6, 2P, C, 6A

S202-C6

UOM: PC

Price w/GST:
S$19.16

Buy $100.00, Get Free Gift

Find In Store

Add to Wishlist Share

Free Delivery Above $100 (Member Only), Arrives by Friday, 16 May
Item unavailable at Ubi Trade Centre>Check Other Stores

System pro M compact S200 miniature circuit breakers are current limiting.

They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection.

They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A).

All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.

ABB Global ID	ABB2CDS252001R0064
Business Area (Master Data) Name	Electrification
Catalog Description	S202-C 6 Miniature Circuit Breaker C-Char.,6kA,6A,2P
Division (Master Data) Name	Smart Buildings
EAN	4016779465502
Rated Insulation Voltage (Ui)	acc. to IEC/EN 60664-1 440 volt
SKU ID	2CDS252001R0064
TECHNICAL
Accessories Available	Yes
Actuator Marking	I / O
Actuator Material	Insulation Group II, Black, Sealable
Connecting Capacity	Busbar 10 / 10 mm²
	Flexible with Ferrule 0.75 ... 25 mm²
	Flexible 0.75 ... 25 mm²
	Rigid 0.75 ... 35 mm²
	Stranded 0.75 ... 35 mm²
Contact Position Indication	Red ON / Green OFF
Dielectric Test Voltage	50/60 Hz, 1 min: 2 kV
Electrical Endurance	20000 AC cycle
Energy Limiting Class	3
Frequency (f)	50 Hz
Housing Material	Insulation Group II, RAL 7035
Installation Size	acc. to DIN 43880 1
Mechanical Endurance (Nendu)	20000 cycle
Mounting On DIN Rail	TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
	TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position	Any
Number Of Protected Poles	2
Overvoltage Category	III
Pollution Degree	3
Power Loss	4 W
	at Rated Operating Conditions per Pole 2 W
Power Supply Connection	Arbitrary
Product Name	Miniature Circuit Breaker
Product Range	S200
Rated Frequency (f)	50 / 60 Hz
Recommended Screw Driver	Pozidriv 2
Screw Terminal Type	Failsafe Bi-directional Cylinder-lift Terminal
Standards	IEC/EN 60898-1
	IEC/EN 60947-2
	UL 1077
Technical Information	202-C 6
Terminal Type	Screw Terminals
Tightening Torque	2.8 N·m
TECHNICAL UL/CSA
Connecting Capacity UL/CSA	Busbar 18-8 AWG
	Conductor 18-4 AWG
Interrupting Rating Acc. To UL1077	(110 V DC) 10 kA
	(277 V AC) 6 kA
	(480Y / 277 V AC) 6 kA
Maximum Operating Voltage UL/CSA	110 V DC
	480Y/277 V AC
Tightening Torque UL/CSA	25 in·lb
DIMENSIONS
Built-In Depth (t2)	69 mm
Pole Net Weight	0.115 kg
ORDERING
Minimum Order Quantity	1 piece
Selling Unit Of Measure	piece
ENVIRONMENTAL
Environmental Conditions	28 cycles
	with 55 °C / 90-96 %
	and 25 °C / 95-100 %
Reference Ambient Air Temperature	30 °C
Resistance To Shock Acc. To IEC 60068-2-27	25g / 2 shocks / 13 ms
Resistance To Vibrations Acc. To IEC 60068-2-6	5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In
RoHS Status	Following EU Directive 2011/65/EU
CLASSIFICATIONS
CN8	8536 20 10
E-Number (Finland)	3210506
E-Number (Sweden)	2100552
EClass	V11.0 : 27141901
EPLAN Catalog Tree	Electrical engineering / Protection devices / General
EPLAN Function Definition	Circuit breaker / Double circuit-breaker / Double circuit breaker 1_2_3_4
ETIM 6	EC000042 - Miniature circuit breaker (MCB)
ETIM 7	EC000042 - Miniature circuit breaker (MCB)
ETIM 8	EC000042 - Miniature circuit breaker (MCB)
Object Classification Code	F
UNSPSC	39121614
WEEE B2C / B2B	Business To Consumer
POPULAR DOWNLOADS
EPLAN Graphical Macro	9AKK106713A8115
EPLAN Macro	9AKK106713A8105
OTHER
Ambient Air Temperature	Operation -25 ... +55 °C
	Storage -40 ... +70 °C
Degree Of Protection	IP20
	Enclosure with Cover IP40
Input Voltage Type	AC/DC
Number Of Poles	2
Operational Voltage	Maximum (Incl. Tolerance) 125 V DC
	Maximum (Incl. Tolerance) 440 V AC
	Minimum 12 V AC
	Minimum 12 V DC
Product Net Width	35
Rated Conditional Short-Circuit Current (Inc)	(230 V) 20 kA
	(400 V) 20 kA
Rated Current (In)	6 A
Rated Impulse Withstand Voltage (Uimp)	at Sea Level 4 kilovolt
	at 2000 m 5 kilovolt
	at Sea Level 6.2 kilovolt
Rated Operational Voltage	acc. to IEC 60898-1 400 V AC
	acc. to IEC 60947-2 440 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)	(230 V AC) 15 kA
Rated Short-Circuit Capacity (Icn)	(230 V AC) 6 kA
	(400 V AC) 6 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)	(230 V AC) 20 kA
	(400 V AC) 10 kA
	(440 V AC) 10 kA
Rated Voltage (Ur)	400 V AC
Tripping Characteristic	C
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
Width In Number Of Modular Spacings	2
