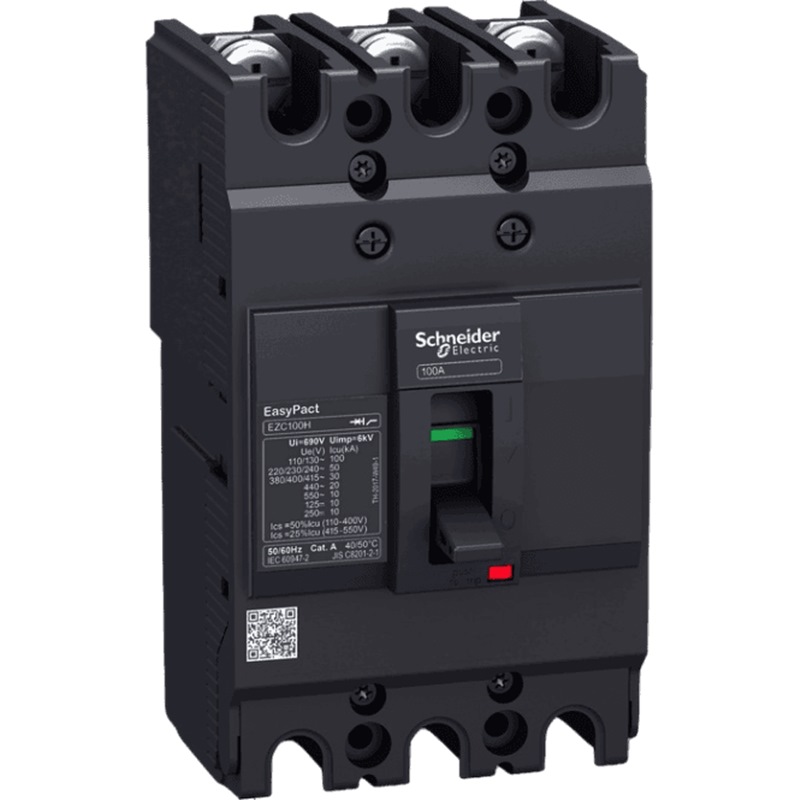

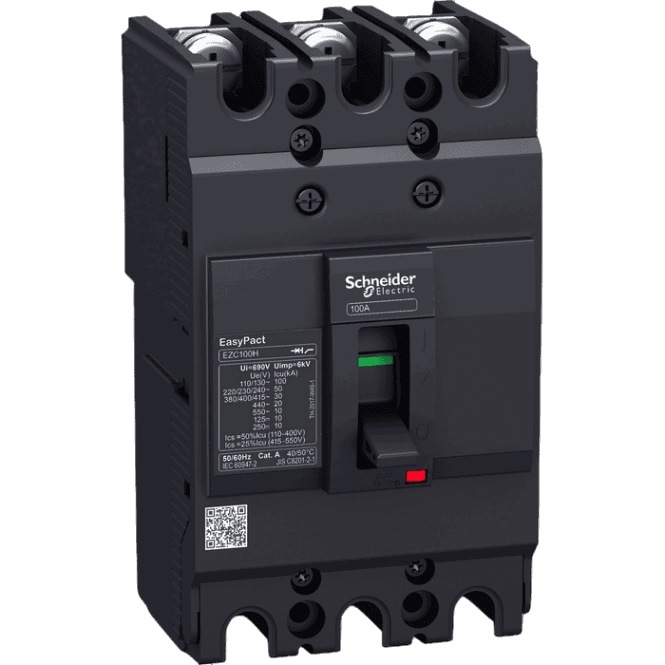

SCHNEIDER EASYPACT EZC100N MCCB BREAKER, 3P 3D, TMD 100A

EZC100N3100

UOM: PC

Price w/GST:
S$73.14

Buy $100.00, Get Free Gift

Find In Store

Add to Wishlist Share

Free Delivery Above $100 (Member Only), Arrives by Friday, 16 May
Item unavailable at Ubi Trade Centre>Check Other Stores

Circuit breaker Easypact EZC100N

100 A

3 poles 3d.

Label : EasyPact

Range : EasyPact

Network type : DC,AC

Network frequency : 50/60 Hz

Range of product : EasyPact

Breaking capacity code : N

Utilisation category : category A

Product name : EasyPact EZC

Trip unit name : TM

Product or component type : circuit breaker

Trip unit technology : thermal

Magnetic

Protection type : short-circuit protection,overload protection

Device short name : Easypact EZC100N

Circuit breaker name : Easypact EZC100N

Device application : distribution-poles description : 3P

Protected poles description : 3t

Range Presentation : The EasyPact EZC system is the simple and universal solution to satisfy all low voltage protection needs.

Easy to choose

Easy to install

Easy to use

Range Benefits : It's so Easy and simple

Safety and protection

Simplicity

Range Application Presentation : Protection of any electrical installation not exceeding 50kA/415V breaking capacity in particular for residential, buildings and industries

Breaking Capacity	10 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
	15 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2
	18 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2
	25 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2
	25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
	5 kA Icu at 125 V DC 1P conforming to IEC 60947-2
	5 kA Icu at 250 V DC 2P conforming to IEC 60947-2
	5 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2
Breaking Capacity Code	N
Contacts Type And Composition	100 A at 40 °C
Control Type	toggle
Product Or Component Type	circuit breaker
Range Of Product	EasyPact
Trip Unit Name	TM-D
[Ie] Rated Operational Current	toggle
[Ue] Rated Operational Voltage	250 V DC conforming to IEC 60947-2
	550 V AC 50/60 Hz conforming to IEC 60947-2
Circuit Breaker Name	Easypact EZC100N
Device Short Name	Easypact EZC100N
EAN13	3303430300892
Mounting Support	backplate
Network Type	AC
	DC
Protected Poles Description	3t
Range	EasyPact
Range Name	EasyPact EZC
Suitability For Isolation	yes conforming to IEC 60947-2
Trip Unit Technology	thermal-magnetic
Utilisation Category	category A
COMPLEMENTARY
Communication Network Type	250 V DC conforming to IEC 60947-2
	550 V AC 50/60 Hz conforming to IEC 60947-2
Current Transformer Type	N
Interlocked Device	10 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
	15 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2
	18 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2
	25 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2
	25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
	5 kA Icu at 125 V DC 1P conforming to IEC 60947-2
	5 kA Icu at 250 V DC 2P conforming to IEC 60947-2
	5 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2
Product Name	EasyPact EZC
[Ics] Rated Service Breaking Capacity	12.5 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2
	12.5 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2
	2.5 kA at 125 V DC conforming to IEC 60947-2
	2.5 kA at 250 V DC conforming to IEC 60947-2
	2.5 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2
	5 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
	7.5 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
	9 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2
[In] Rated Current	100 A at 40 °C
Compatibility Code	EZC100
Connection Pitch	25 mm
Depth	60 mm
Device Application	distribution
Downside Connection	front
Earth-leakage Protection	without
Electrical Durability	category A: 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2
Height	130 mm
Local Signalling	positive contact indication
Market Segment	small commercial
Mechanical Durability	8500 cycles
Mounting Mode	fixed
Network Frequency	50/60 Hz
Neutral Protection Setting	without protection
Protection Type	overload protection
	short-circuit protection
Trip Unit Rating	100-100 A at 50 °C
Upside Connection	front
Width	75 mm
[Uimp] Rated Impulse Withstand Voltage	6 kV conforming to IEC 60947-2
[Ui] Rated Insulation Voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
ENVIRONMENT
Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Storage	-35-85 °C
IK Degree Of Protection	IK07 conforming to IEC 62262
IP Degree Of Protection	IP20 conforming to IEC 60529
Pollution Degree	3 conforming to IEC 60664-1
	3 conforming to IEC 947-1
Standards	EN/IEC 60947-1
	EN/IEC 60947-2
	GB/T 14048.2
	JIS C8201-2-2
OTHER
Earth Leakage Current	TM-D
Poles Description	3P
[Us] Rated Supply Voltage	EasyPact
