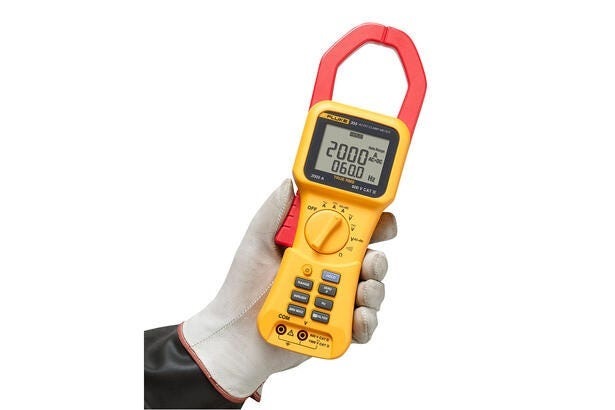

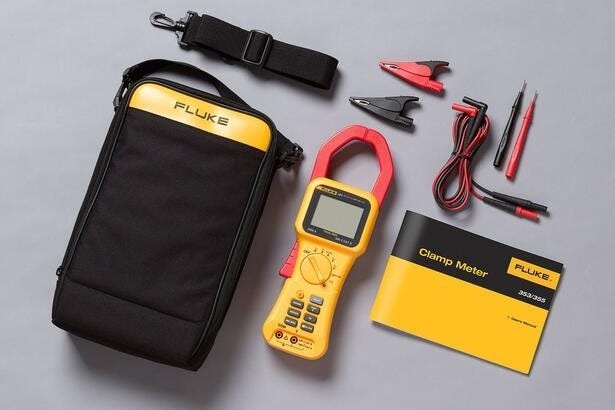

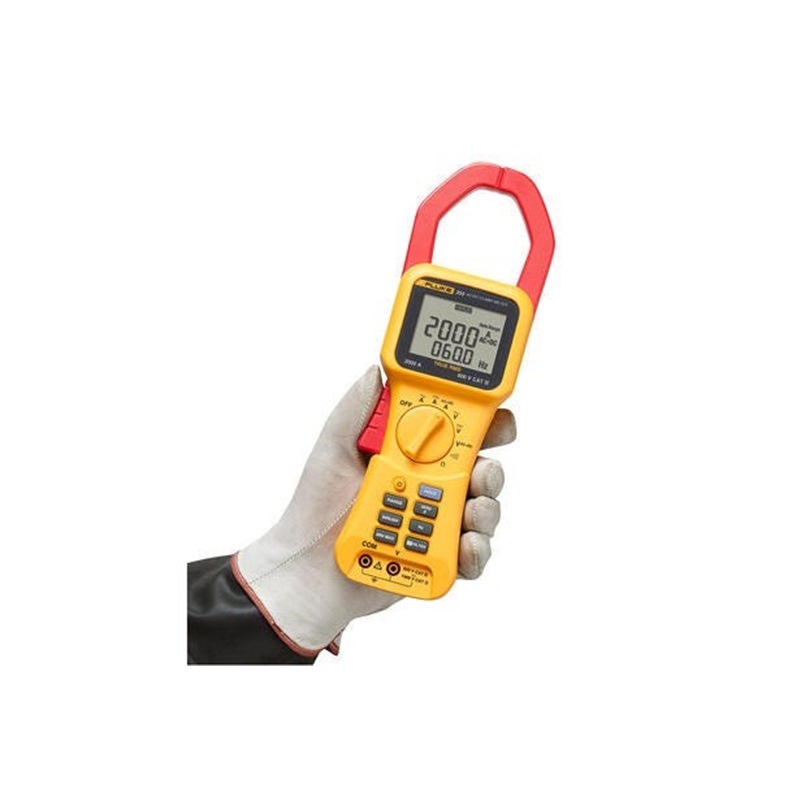

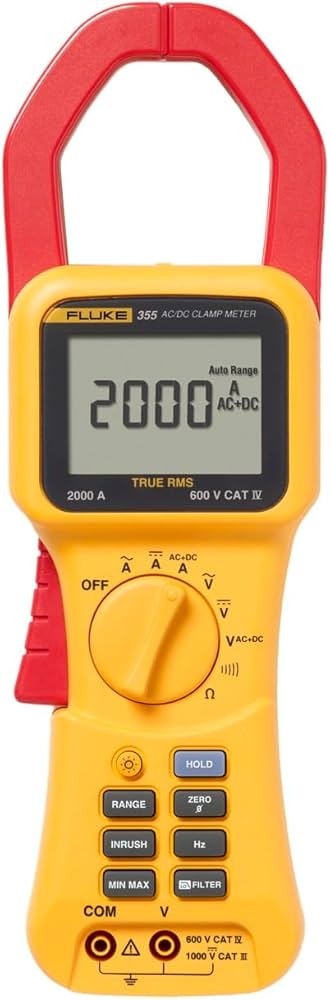

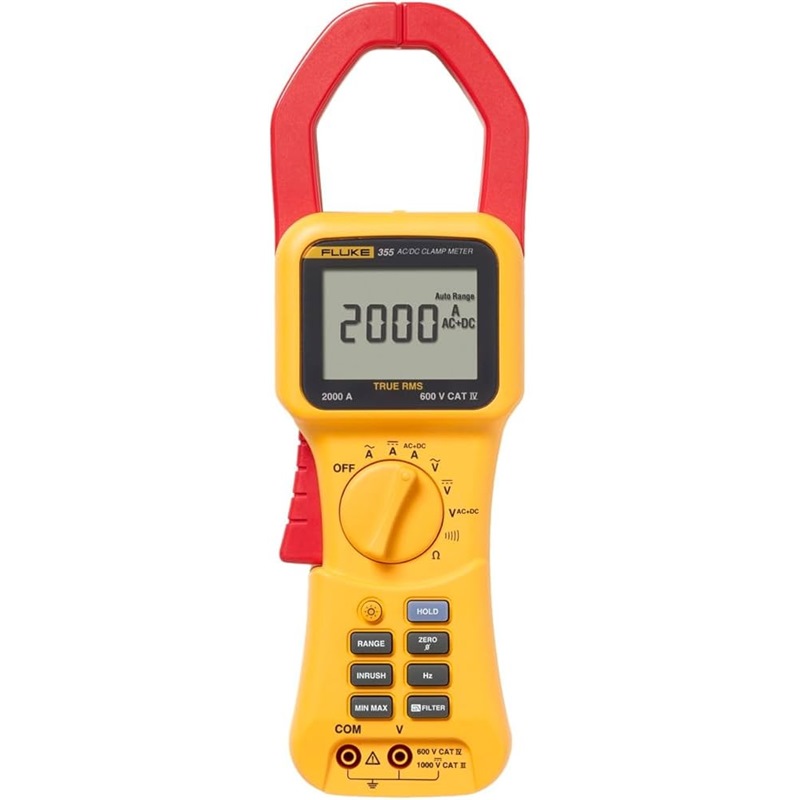

FLUKE 355 TRUE RMS 2000 A CLAMP METER

UOM: PC

Price w/GST:
S$2,092.80

Find In Store

Add to Wishlist Share

Free Delivery Above $100 (Member Only), Arrives by Friday, 6 Mar
Item unavailable at Ubi Trade Centre>Check Other Stores

Versatile and rugged clamp meter for high currents Confidently take reliable readings with the True RMS Fluke 355 digital clamp meter, the tool of choice for high current clamp-on amp meter measurement up to 2000 A. The extra-wide jaw easily clamps around large conductors, typically found in high-current applications. The extra rugged design and CAT IV 600 V, CAT III 1000 V ratings add an extra element of user protection when taking high-powered measurements.

Accurate peak measurements can be taken using the in-rush current mode, ideal for motors and inductive loads. The 355 also measures voltage and resistance, making this an ideal clamp meter for utilities, electrical contractors and industrial service technicians.

Easy to use all-in-one tool

High voltage measurement of 1000 V AC + DC True RMS, 600 V AC, and 1000 V DC allows the user to perform multiple tests with only one tool

Resistance to 400K ohms coupled with a continuity beeper provide the convenience of a multimeter in a clamp meter

Accurately measure frequency up to 1 kHz for optimum troubleshooting

Quickly analyze readings using the MIN, MAX, and AVG functions

A large backlit display allows for easy visibility in low-lit areas

Use the display hold feature to capture readings even when the display cannot be viewed

Use the low-pass filter to smooth out noisy loads and stabilize readings

Current measurement AC 10 Hz to 100 Hz	Range	40 A / 400 A / 1400 AC rms
	Resolution	10 mA / 100 mA / 1 A
	Accuracy	40 A: 1.5% rdg + 15 digits
		400 A: 1.5% rdg + 5 digits
		1400 A: 1.5% rdg + 5 digits
	Trigger level for Inrush	0.50 A / 5.0 A / 5 A
	Trigger level for Hz filter OFF	2.50 A / 2.5 A / 8 A
	Trigger level for Hz filter ON	0.50 A / 2.5 A / 8 A
Crest Factor (50/60 Hz)	Range	40 A / 400 A / 1400 AC
	Crest Factor1	2 @ 33 A, 2.4 @ 27 A
		2 @ 330 A, 2.4 @ 270 A
		2 @ 1000 A, 2.4 @ 833 A
Current measurement AC 100.1 Hz to 1 kHz	Range	40 A / 400 A / 1400 AC rms
	Resolution	10 mA / 100 mA / 1 A
	Accuracy	40 A: 3.5% rdg + 15 digits
		400 A: 3.5% rdg + 5 digits
		1400 A: 3.5% rdg + 5 digits
	Trigger level for Inrush	0.50 A / 5.0 A / 5 A
	Trigger level for Hz filter OFF	2.50 A / 2.5 A / 8 A
	Trigger level for Hz filter ON	0.50 A / 2.5 A / 8 A
Current measurement DC	Range	40 A / 400 A / 2000 A
	Resolution	0.01 A / 0.1 A / 1 A
	Accuracy	40 A: 1.5% rdg + 15 digits
		400 A: 1.5% rdg + 5 digits
		2000 A: 1.5% rdg + 5 digits
Voltage measurement AC 10 Hz to 100 Hz	Range	4 V / 40 V / 400 V / 600 V AC rms
(600 V range has 10% over range to 660 V)	Resolution	1 mV / 10 mV / 100 mV / 1 V
	Accuracy	4 V: 1% rdg + 10 digits
		40 V: 1% rdg + 5 digits
		400 V: 1% rdg + 5 digits
		600 V: 1% rdg + 5 digits
	Trigger level for Hz filter OFF	0.25 V / 6 V
	Trigger level for Hz filter ON	0.25 V / 6 V
Voltage measurement AC 100.1 Hz to 1 kHz	Range	4 V / 40 V / 400 V / 600 V ac rms
(600 V range has 10% over range to 660 V)	Resolution	1 mV / 10 mV / 100 mV / 1 V
	Accuracy	4 V: 3% rdg + 10 digits
		40 V: 3% rdg + 5 digits
		400 V: 3% rdg + 5 digits
		600 V: 3% rdg + 5 digits
	Trigger level for Hz filter OFF	0.050 V / 0.25 V / 6 V / 6 V
	Trigger level for Hz filter ON	0.050 V / 0.25 V / 6 V / 6 V
Voltage measurement DC	Range	4 V / 40 V / 400 V / 1000 V
	Resolution	0.001 V / 0.01 V / 0.1 V / 1 V
	Accuracy	4 V: 1% rdg + 10 digits
		40 V: 1% rdg + 5 digits
		400 V: 1% rdg + 5 digits
		1000 V: 1% rdg + 5 digits
Resistance measurement	Range	400 Ω / 4 kΩ / 40 kΩ / 400 kΩ
	Resolution	0.1 Ω / 1 Ω / 10 Ω / 100 Ω
	Accuracy	1.5% + 5 digits
Continuity beeper	On at ≤ 30 Ω
	Off at ≥ 100 Ω
Frequency measurement	Measurement range	5.0 Hz to 1 kHz
	Resolution	0.1 Hz (15 Hz to 399.9 Hz); 1 Hz (400 Hz to 1 kHz)
	Accuracy – 5.0 Hz to 100 Hz	0.2% + 2 counts
	Accuracy – 100.1 Hz to 1 kHz	0.5% + 5 counts
	Trigger level	Refer to current and voltage tables
