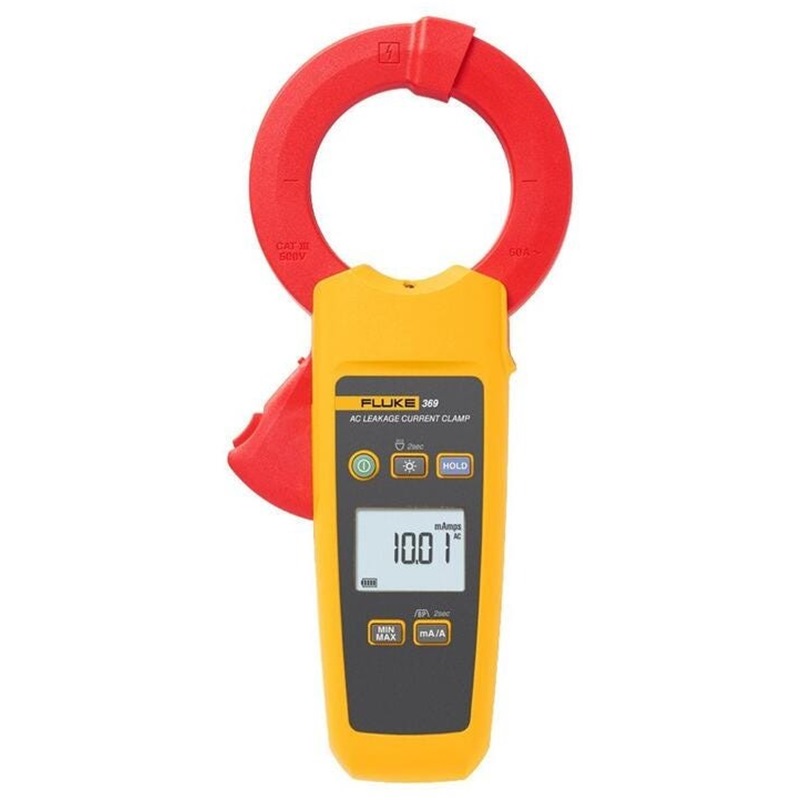

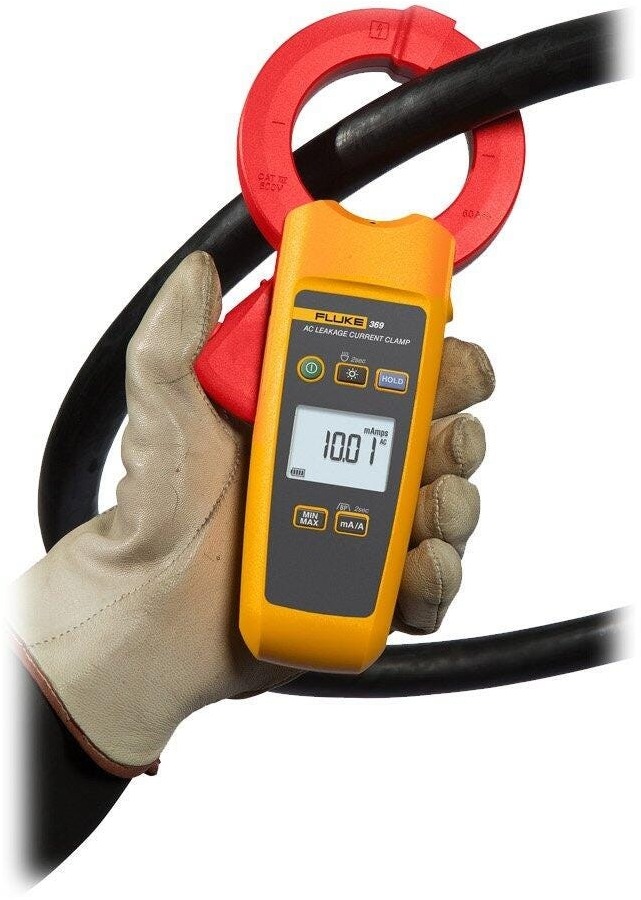

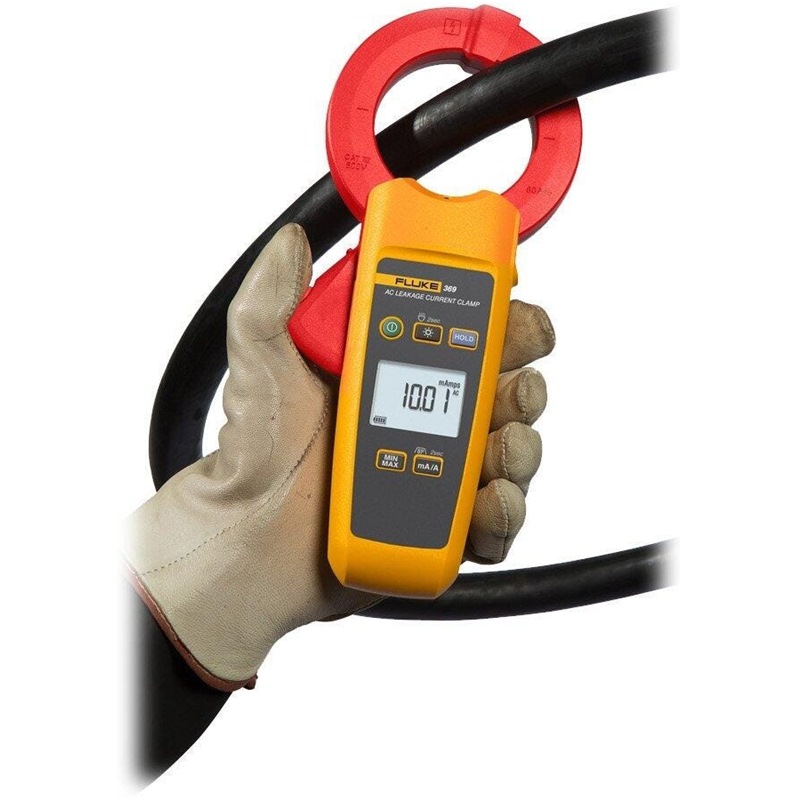

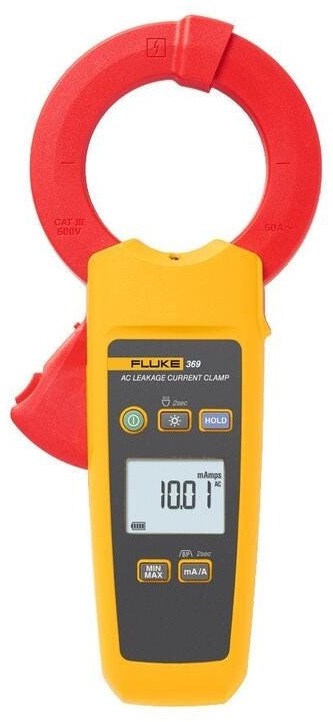

FLUKE 369 TRUE-RMS LEAKAGE CURRENT CLAMP METER

UOM: PC

Price w/GST:
S$1,896.60

Find In Store

Add to Wishlist Share

Free Delivery Above $100 (Member Only), Arrives by Friday, 6 Mar
Item unavailable at Ubi Trade Centre>Check Other Stores

Reduce downtime – Find leakage currents without taking equipment offline The Fluke 369 FC true-rms leakage current clamp meter helps users detect, document, record and compare leakage current readings over time as a means of preventing unplanned downtime, and identifying intermittent GFCI and RCD trips, all without taking equipment off line.

The Fluke 369 FC has an oversize 61 mm jaw for work with extra-large conductors. The clamp’s jaw is fully shielded to accurately capture very small leakage signals, and to minimize external electromagnetic interference.

Electrical Specifications
Measurement function	Alternating current
AC ampere range	3 mA, 30 mA, 300 mA, 3 A, 30 A, 60 A
Range selection	mA / A: manual selection
	3 mA / 30 mA / 300 mA: automatic selection
	3 A / 30 A / 60 A: automatic selection
Range / Resolution	3 mA¹ / 0.001 mA
	30 mA / 0.01 mA
	300 mA / 0.1 mA
	3 A / 0.001 A
	30 A / 0.01 A
	60 A / 0.1 A
Accuracy – filter activated (40 to 70 Hz), filter off (40 to 1 kHz)²	3 mA – 30 A	1% + 5 digits
	60 A	2% + 5 digits
Frequency	40 Hz to 1 kHz
Crest Factor	3
After calibration accuracy is valid for one year. Accuracy is expressed as ± (% of reading + digits). Reference conditions 23 ±5 °C and a maximum relative humidity of 80%.
¹The minimum value is 10 μA rms.
²Outside of the TC / °C 18 °C to 28 °C, 0.02 + 1
Physical
Display (LCD)	Digital readout: 3300 count
Display refresh rate	4 times / sec
Maximum conductor diameter	61 mm
Dimensions	257 x 116 x 46 mm
Weight	600 g
Battery	2 AA, IEC LR6, NEDA 15A, alkaline
Battery life	Expected battery life, without using backlight and spotlight, is more than 150 hours
Automatic shut-down	Meter automatically shuts down after 15 minutes of inactivity
Safety and Environmental Specifications
General safety	IEC 61010-1: Pollution Degree 2
Measurement safety	IEC 61010-2-032: CAT III 600 V / CAT IV 300 V
Operating temperature	-10 °C to +50 °C
Storage temperature	-40 °C to +60 °C
Operating humidity	Non-condensing (<10 °C)
	90% relative humidity (10 °C to 30 °C)
	75% relative humidity (30 °C to 40 °C)
	45% relative humidity (40 °C to 50 °C)
Protection class	IEC 60529: IP30 (jaw closed)
Operating altitude	2000 m
Storage altitude	12000 m
Current sensor action category	IEC 61557-13: Class 2, ≤30 A / m
Electromagnetic compatibility (EMC)
International
IEC 61326-1	Industrial Electromagnetic Environment
CISPR 11	Group 1 Class B
Group 1	Generated inside the equipment and / or use radio frequency energy associated with conducting the energy for the device's own internal functions is essential.
Class B	Equipment for home appliances and residential buildings directly connected to a low voltage power supply network equipment. When this device is connected to a test object, it may exceed the emission levels produced by CISPR 11 requirements.
	Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment)
Class A	This product meets the requirements of industrial electromagnetic equipment, vendors or users should be aware of this. This device is intended for use in a commercial environment, instead of the home environment.
	USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
