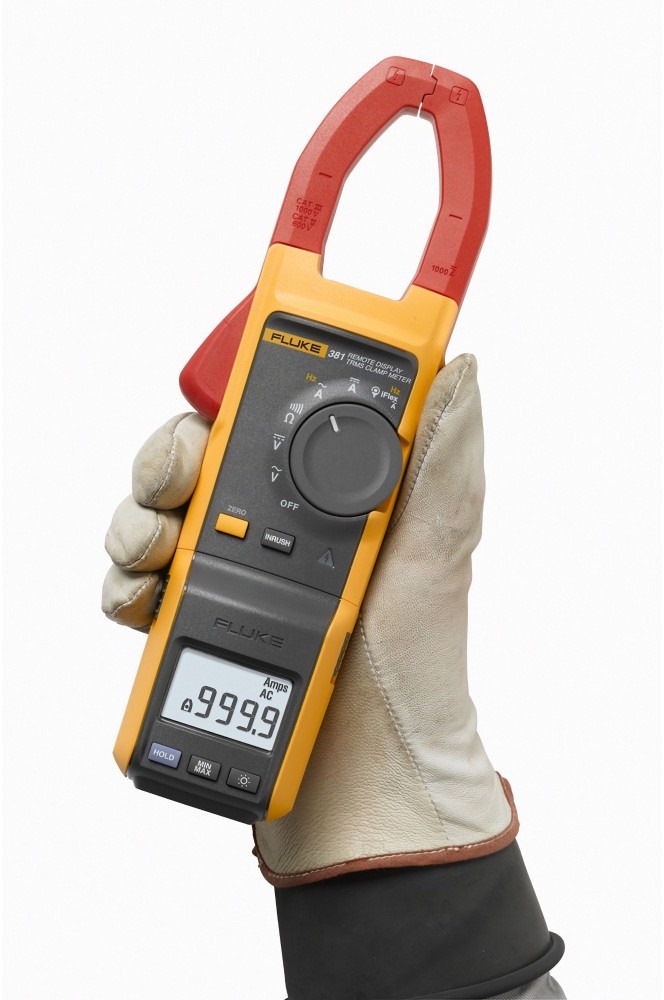

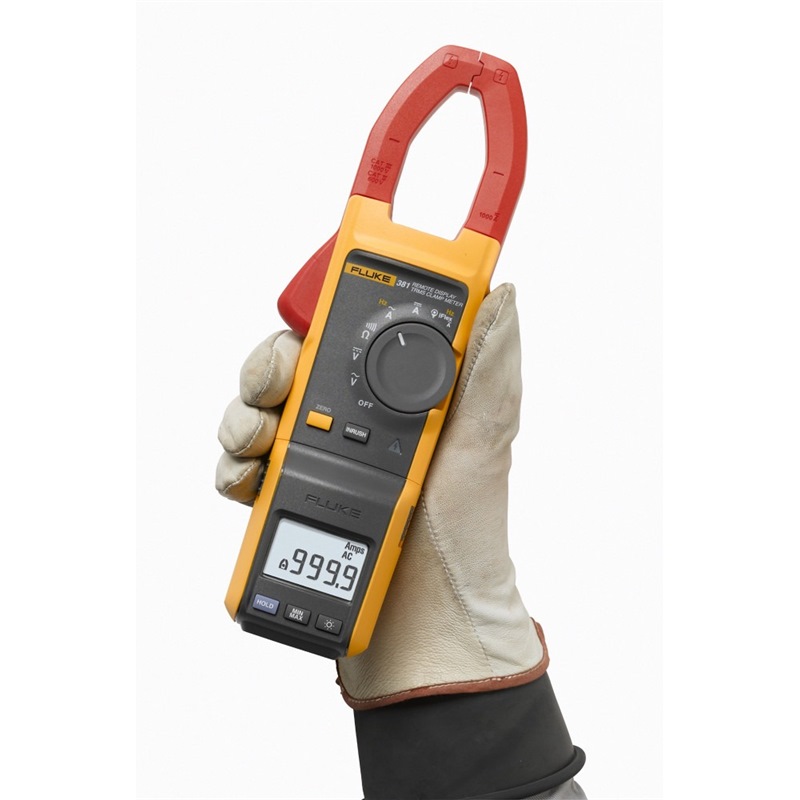

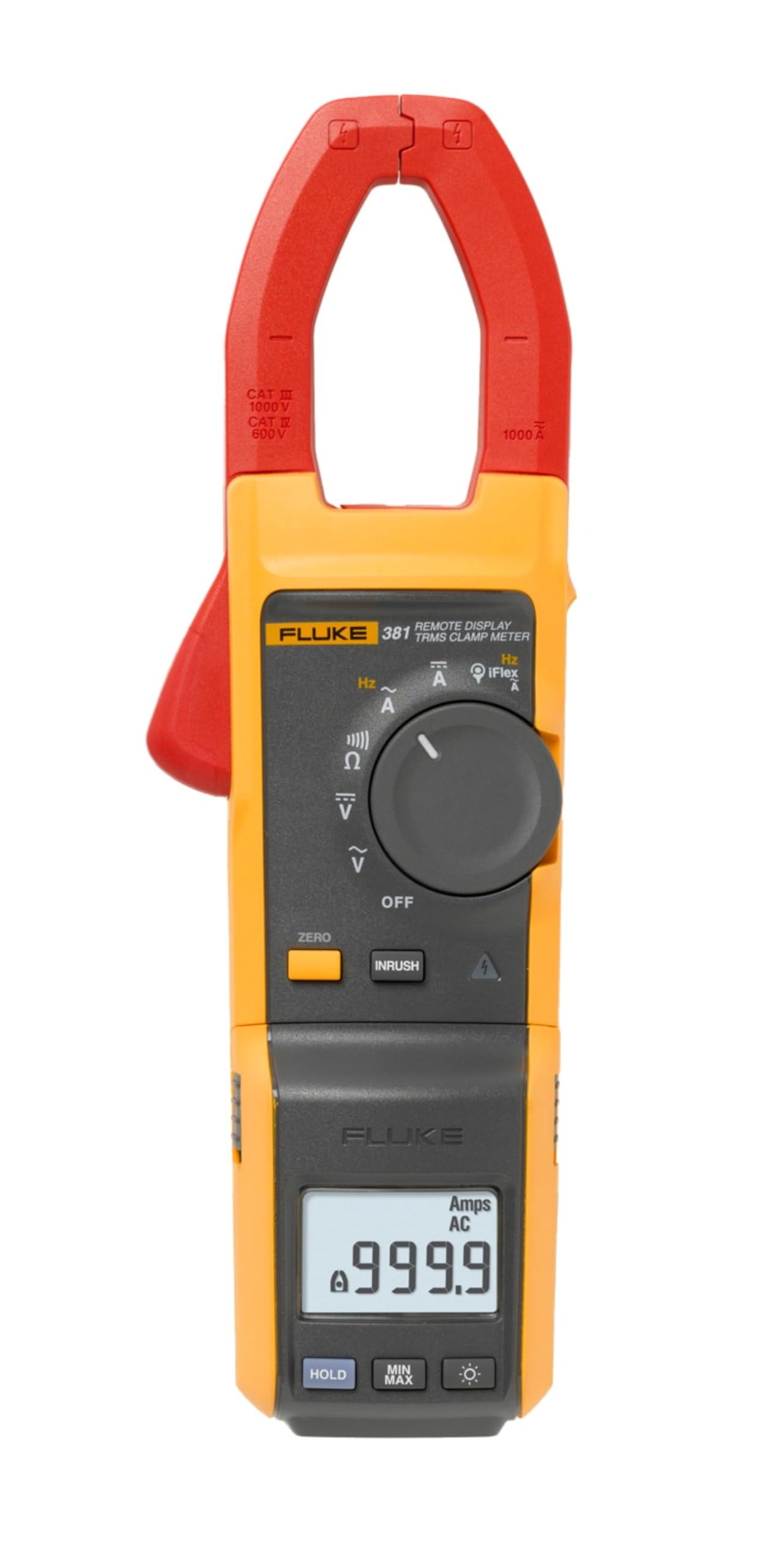

FLUKE 381 REMOTE DISPLAY TRUE RMS AC/DC CLAMP METER WITH IFLEX

UOM: PC

Price w/GST:
S$1,482.40

Find In Store

Add to Wishlist Share

Free Delivery Above $100 (Member Only), Arrives by Thursday, 5 Mar
Item unavailable at Ubi Trade Centre>Check Other Stores

What once took two people, now takes one

Now one technician can do jobs that would otherwise require two people. Clamp the Fluke 381 around a conductor, remove the display and walk across the room to operate controls or remove protective equipment, all while watching real-time readings.

The iFlex® Flexible Current Probe (included) expands the measurement range to 2500 A AC while providing increased display flexibility. With a cord that runs 6 feet, you can finally measure those tight spaces, awkward sized conductors and disorganized wires.

Electrical Specifications
AC Current via Jaw
Range	999.9 A
Resolution	0.1 A
Accuracy	2% ± 5 digits (10-100 Hz)
	5% ± 5 digits (100-500 Hz)
Crest Factor (50/60 Hz)	3 @ 500 A
	2.5 @ 600 A
	1.42 @ 1000 A
	Add 2% for C.F. > 2
AC Current via Flexible Current Probe
Range	999.9 A / 2500 A (45 Hz – 500 Hz)
Resolution	0.1 A / 1 A
Accuracy	3% ± 5 digits
Crest Factor (50/60 Hz)	3.0 at 1100 A
	2.5 at 1400 A
	1.42 at 2500 A
	Add 2% for C.F. > 2
Position Sensitivity
Flexible current probe	Distance from Optimum
		i2500-10 Flex	i2500-18 Flex	Error
	A	0.5 in (12.7 mm)	1.4 in (35.6 mm)	±0.5%
	B	0.8 in (20.3 mm)	2.0 in (50.8 mm)	±1.0%
	C	1.4 in (35.6 mm)	2.5 in (63.5 mm)	±2.0%
Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range.
DC Current
Range	999.9 A
Resolution	0.1 A
Accuracy	2% ± 5 digits
AC Voltage
Range	600 V /1000 V
Resolution	0.1 V / 1 V
Accuracy	1.5% ± 5 digits (20 – 500 Hz)
DC Voltage
Range	600.0 V /1000 V
Resolution	0.1 V / 1 V
Accuracy	1% ± 5 digits
Frequency – Via Jaw
Range	5.0 – 500.0 Hz
Resolution	0.1 Hz
Accuracy	0.5% ± 5 digits
Trigger Level	5 – 10 Hz, ≥ 10 A
	10 – 100 Hz, ≥ 5 A
	100 – 500 Hz, ≥ 10 A
Frequency via Flexible Current Probe
Range	5.0 to 500.0 Hz
Resolution	0.1 Hz
Accuracy	0.5% ± 5 digits
Trigger Level	5 to 20 Hz, ≥ 25 A
	20 to 100 Hz, ≥ 20 A
	100 to 500 Hz, ≥ 25 A
Resistance
Range	600 Ω/6 kΩ/60 kΩ
Resolution	0.1 Ω/1 Ω/10 Ω
Accuracy	1% ± 5 digits
Mechanical Specifications
Size (L x W x H)	277 x 88 x 43 mm (55 mm for remote unit)
Weight	350 g
Jaw Opening	34 mm
Flexible Current Probe Diameter	7.5 mm
Flexible Current Probe Cable Length	1.8 m
(head to electronics connector)
Environmental Specifications
Operating Temperature	-10°C to +50°C
Storage Temperature	-40°C to +60°C
Operating Humidity	Non condensing (< 10°C)
	≤ 90% RH (at 10°C to 30°C)
	≤ 75% RH (at 30°C to 40°C)
	≤ 45% RH (at 40°C to 50°C)
	(Without Condensation)
Operating Altitude	2,000 meters
Storage Altitude	12,000 meters
EMI, RFI, EMC, RF	EN 61326-1:2006, EN 61326-2-2:2006
	ETSI EN 300 328 V1.7.1:2006
	ETSI EN 300 489 V1.8.1:2008
	FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249
	FCCID: T68-F381
	RSS-210 IC: 6627A-F381
Temperature Coefficients	Add 0.1 x specified accuracy for each degree C above 28°C or below 18°C
Wireless Frequency	2.4 GHz ISM Band 10 meter range
Safety Compliance	ANSI/ISA S82.02.01:2004
	CAN/CSA-C22.2 No. 61010-1-04
	IEC/EN 61010-1:2001 to 1000V CAT III, 600V CAT IV.
Double Insulation Clearance	Per IEC 61010-2-032
Double Insulation Creepage	Per IEC 61010-1
Agency Approvals
