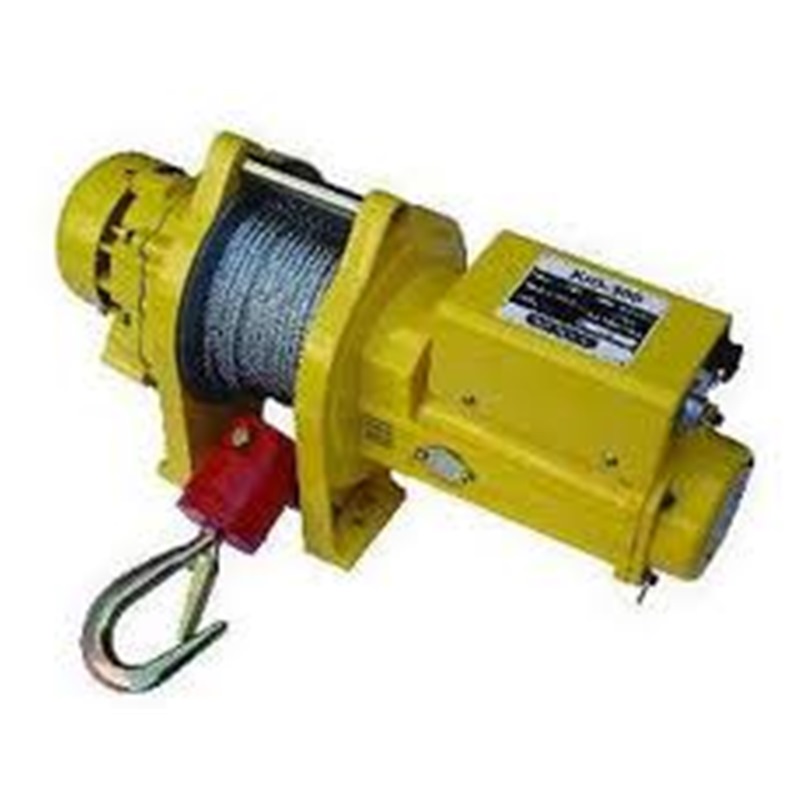

KIO ELECTROMAGNET WINCH 300KG, 240V, 7*40M, CKS300L

  • bvseo_sdk, net_sdk, 2.2.0.2
  • getAggregateRating, method:CLOUD, 275ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
KIO WINCH & HOIST CKS 300L
EXCLUSIVE
UOM: UNIT
Price w/GST:
$1,298.50


Order by 12pm Friday, 20 Sep, earliest delivery Wednesday, 25 Sep

KIO ELECTROMAGNET WINCH 300KG, 240V, 7*40M, CKS300L

LightWeight and compact design

Dynamic and mechanical brake provides instant and safe braking

Operates on standard household power supply

Comes complete with wire rope and hook

Enclosed drum flange to prevents ropes becoming trapped between drum and support castings

Model CKS-300L
Lifting Capacity kg Wire rope Top layer 300
Lifting Speed First layer: 16 m/Min
Top Layer: 25 m/Min
Motor kw X A Type: Series would
Output: 2.3 x 11
Braking method For motor: Electromagnetic Brake
For gear: Mechanical brake
Lifting Height 39m
Wore rope Diameter: 7mm
Length: 40m
Drum Dimension Width: 147 mm
Drum diameter: 95mm
Dlange Diameter: 190mm
Mounting bolt pattern 135x207mm
Net Weight 40kg
