KIO ELECTRIC WINCH W/BASE, 500KG, 240V, 8*50M ROPE, GG500BL

  • bvseo_sdk, net_sdk, 2.2.0.2
  • getAggregateRating, method:CLOUD, 546ms
  • REVIEWS, PRODUCT
  • bvseo-msg: Execution timed out, exceeded 500ms;
KIO WINCH & HOIST GG500BL
EXCLUSIVE
UOM: UNIT
Price w/GST:
$1,909.95

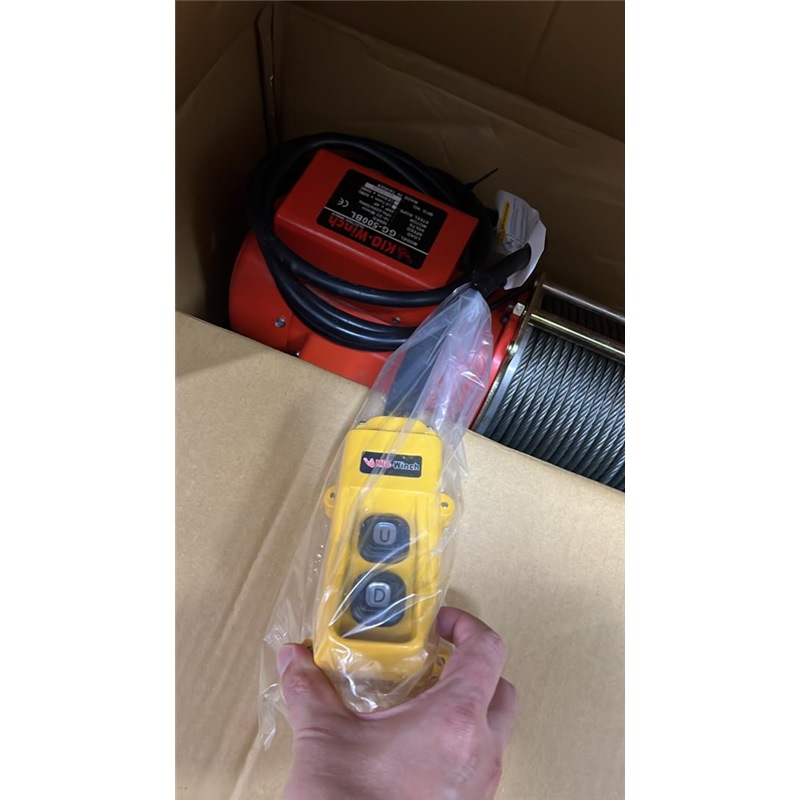

KIO ELECTRIC WINCH W/BASE, 500KG, 240V, 8*50M ROPE, GG500BL
Positive retention of wire rope on to drum
Electromagnetic spring-applied fail safe brake
Heavy duty high efficiency ball bearings on all running surfaces
Planetary gearing for maximum mechanical efficiency
Enclosed drum flange to prevents ropes becoming trapped between drum and support castings quietrunning
Model GG-500BL
Lifting capacity kg wire rope top layer 500
Lifting speed First layer: 18 m/min
  Top Layer: 23 m/min
Motor Rating IP44 1.8 x 4 kw/poles
Maximum Lifting height 49m
Wire Rope Diameter: 8mm
  Length: 50m
Drum dimension Width: 210mm
  Drum Diameter: 90mm
  Flange Diameter: 180mm
Mounting bolt pattern 255 x 165mm
Net weight 70kg
