ORBIT GRIP W2 SS HOSE CLIP (DIN3O17)

  • bvseo_sdk, net_sdk, 2.2.0.2
  • getAggregateRating, method:CLOUD, 511ms
  • REVIEWS, PRODUCT
  • bvseo-msg: Execution timed out, exceeded 500ms;
ORBIT
UOM: BOX OF 50
Price w/GST:
$23.60


Size:
Package:
Please select an option above

Order by 12pm Tuesday, 23 Jul, earliest delivery Friday, 26 Jul

ORBIT GRIP W2 (GPDNW2) hose clip is manufactured and tested according to the German Standard DIN3017.
It is developed to supply all applications that require this German Standard specification (DIN3017).
The price is comparable to W1 while the corrosion resistance is better.
Unlike other DIN clips in the market, ORBIT GRIP band thread is precisely cold formed which results in a smooth underside surface to optimize hose protection and the band edges are raised to prevent damage to the hose.
The material is W2 grade with a 430 stainless steel Hexavalent Chromium-Free screw which is RoHS compliant.
ORBIT GRIP W2 (GPDNW2) is ideal for automotive applications, auto parts aftermarket and mechanical engineering where low to average requirement in terms of corrosion resistance is required.

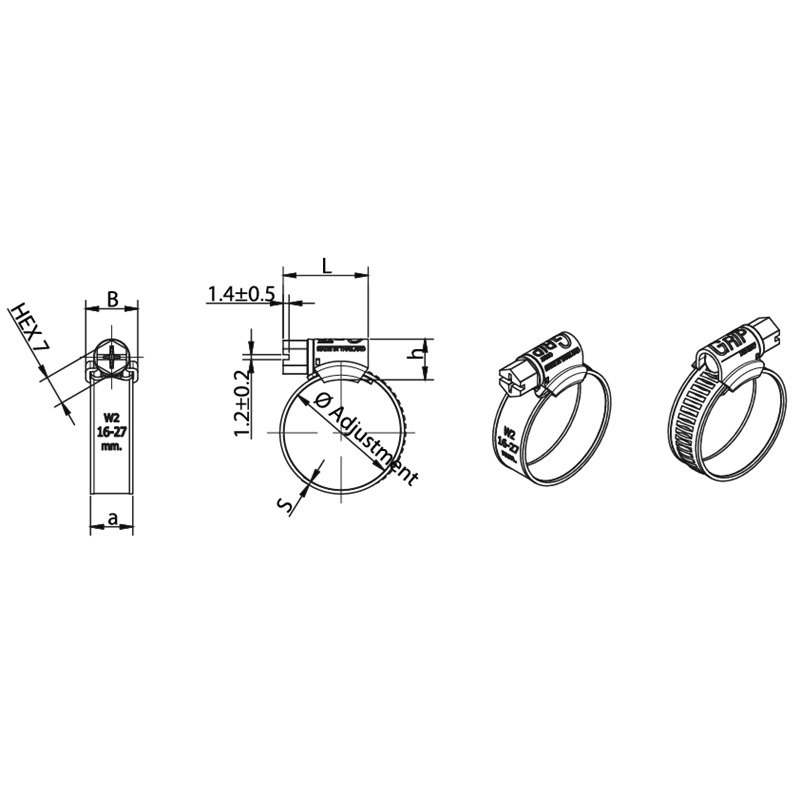

Size Reference Range mm S±0.05 h max a+0.5/ -0.2 b max Torque Nm
12 GPDN95-012 8-10 0.8 10 9.5 12.3 4.5
16 GPDN95-016 10-16 0.8 10 9.5 12.3 4.5
20 GPDN95-020 12-20 0.8 10 9.5 12.3 4.5
22 GPDN95-022 12-22 0.8 10 9.5 12.3 4.5
25 GPDN95-025 16-25 0.8 11.5 9.5 12.3 4.5
27 GPDN95-027 16-27 0.8 11.5 9.5 12.3 4.5
32 GPDN95-032 20-32 0.8 11.5 9.5 12.3 4.5
40 GPDN95-040 25-40 0.8 11.5 9.5 12.3 5
45 GPDN95-045 30-45 0.8 11.5 9.5 12.3 5
50 GPDN95-050 35-50 0.8 11.5 9.5 12.3 5
60 GPDN95-060 40-60 0.8 11.5 9.5 12.3 5
70 GPDN95-070 50-70 0.8 11.5 9.5 12.3 5
80 GPDN95-080 60-80 0.8   9.5 12.3 5
90 GPDN95-090 70-90 0.8   9.5 12.3 5
100 GPDN95-100 80-100 0.8   9.5 12.3 5
110 GPDN95-110 90-110 0.8   9.5 12.3 5
120 GPDN95-120 100-120 0.8   9.5 12.3 6.1
130 GPDN95-130 110-130 0.8   9.5 12.3 6.1
140 GPDN95-140 120-140 0.8   9.5 12.3 6.1
150 GPDN95-150 130-150 0.8   9.5 12.3 6.1
160 GPDN95-160 140-160 0.8   9.5 12.3 6.1
