CYC INVERTER WELDER ARC200D

  • bvseo_sdk, net_sdk, 2.2.0.2
  • getAggregateRating, method:CLOUD, 312ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
CYC ARC200D
UOM: UNIT
Price w/GST:
$230.05


Order by 12pm Tuesday, 22 Oct, earliest delivery Friday, 25 Oct

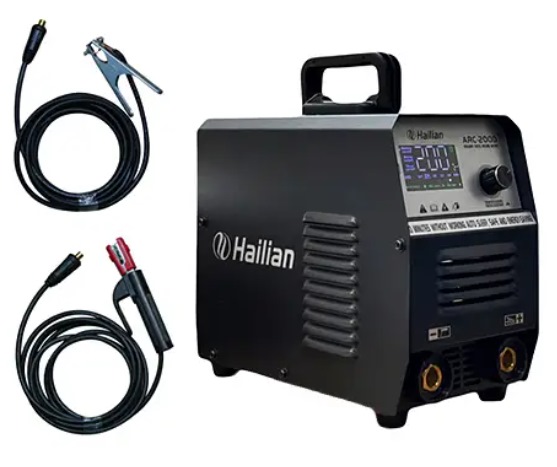

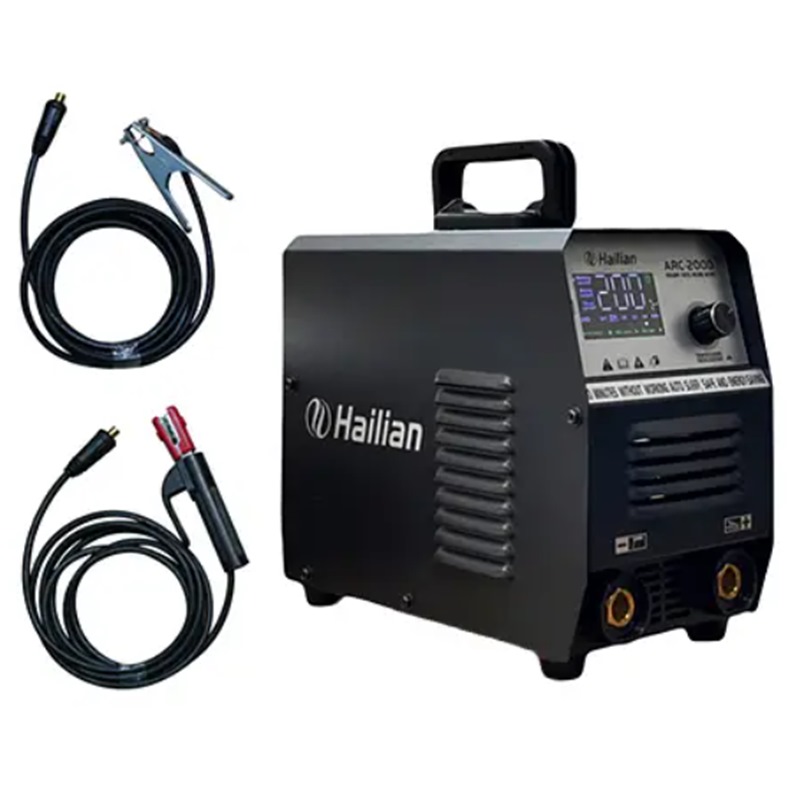

CYC Inverter welder ARC200D

Welding cable with holder ~5m

Earth cable with clamp ~3m

Conform the EMC Directives: 73/23/EEC and 89/336/EEC

European standard: EN/IEC60974

Input Power Voltage (VAC) 220 +- 15%
Input Voltage Frequency (Hz) 50/60
Rated Input Power Capacity (KVA) 7
Rated Input Current (A) 32
Rated Output Voltage (V) 28
Output Current range (A) 20-200
Drive Current range (A) 0-80
Duty cycle (%) 60
No-Load Voltage (V) 62 +- 3%
No-Load consumption (W) 30
Efficency (%) 85
Power factor 0.93
Insulation class B
Protection class IP23
Weight (kg) 6.8
