Price w/GST:

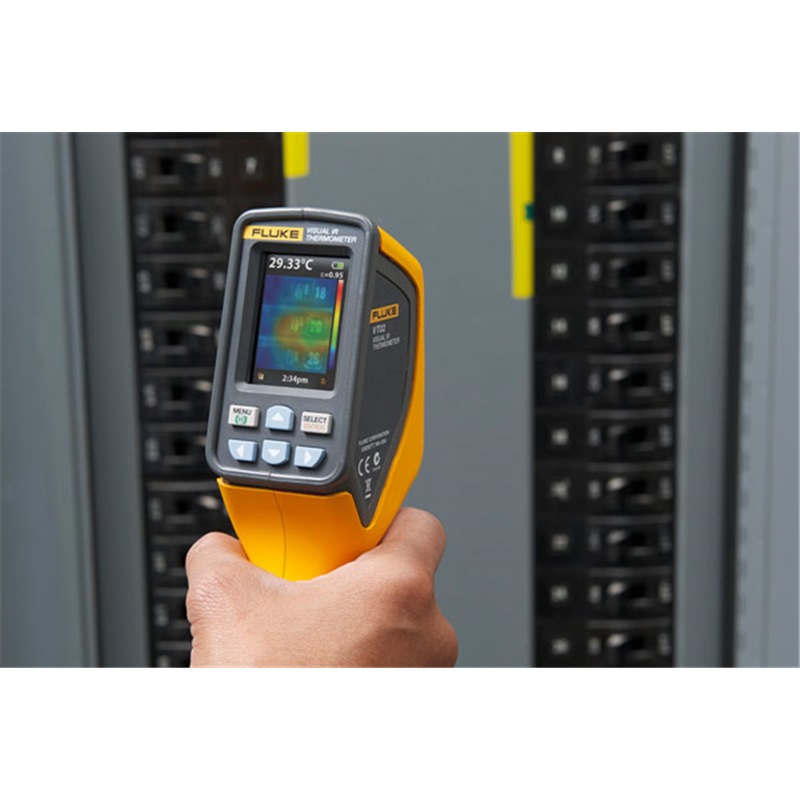

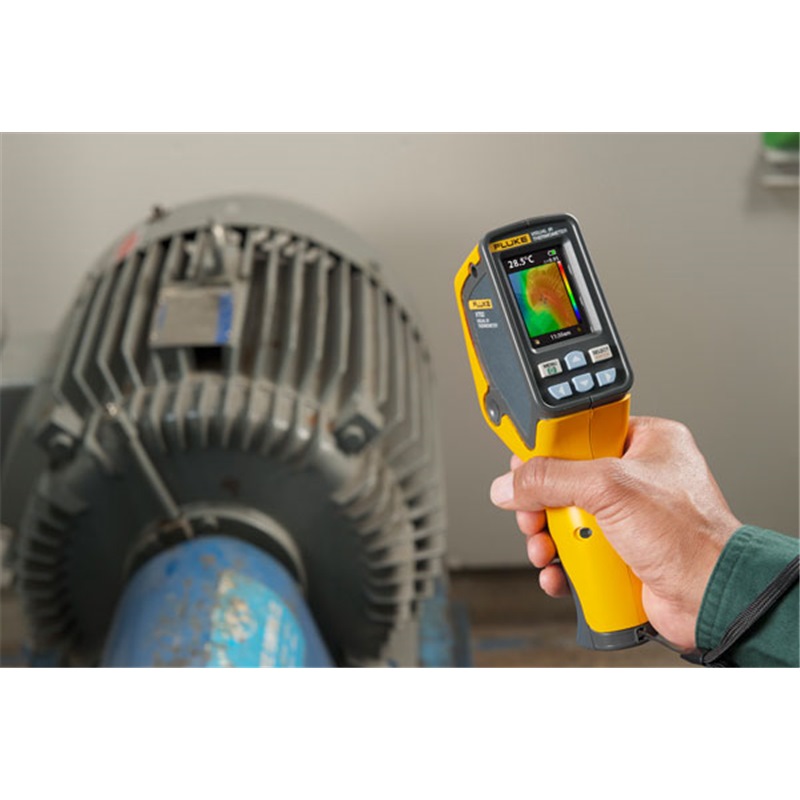

The VT02 Visual IR Thermometer combines the convenience of a spot thermometer with the visual advantage of a thermal imager creating a brand new tool category – a troubleshooting camera with an infrared heat map.
Temperature measurement range -10 °C to +250 °C (14 °F to 482 °F)
Temperature measurement accuracy ±2°C or ±2% of reading in °C, whichever is the greater (at 25 °C nominal) as tested
On-screen emissivity correction Yes
On-screen reflected background temperature compensation Yes
Imaging performance
Image capture frequency 8 Hz
Detector type Uncooled Hyperthin Pyroelectric Ceramic
Infrared spectral band 6.5 µm to 14 µm
Field of View 20° X 20°
Image presentation
Palettes Ironbow, Rainbow, Rainbow High Contrast, gray scale and inverted gray scale.
Level and span Auto
Viewing options Blending of the visual and the infrared from full infrared to full visual in 25% steps.
Hot spot and cold spot tracking Yes
Image capture and data storage
Image capture Image will freeze allowing review before saving.
Storage medium 4 GB Micro SD card (stores well over 10,000 individual images).
File format .is2 format saved to SD card. When imported to included SmartView® reporting software user can create professional reports or images can be exported into multiple formats (BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF AND TIFF).
Memory review Scroll through all saved images and view on screen.
General Specifications
Operating Temperature -10 °C to +45 °C (14 °F to 113 °F)
Storage Temperature -20 °C to +60 °C (-4 °F to 140 °F)
Relative humidity 10 % to 90 % non-condensing
Display 2.2 in diagonal
Controls and adjustments Select color palette User selectable temperature scale (°F/°C) Time/date set Emissivity selection Reflected background temperature compensation
Software SmartView® analysis and reporting software.
Batteries 4 AA
Battery life 8 hrs
Power saving Power down after 10 minutes of inactivity.
Electromagnetic compatibility CE EN61326-1:2006
US FCC CFR47: 2009 Class A. Part 15 subpart B.
Drop MIL-PRF-288000F; Class 2 section; 30cm
Size (H x W x L) 21cm x 7.5cm x 5.5cm (8.3in x 3in x 2.2in)
Weight (battery included) 385g (13.5 oz)
