KIO ELECTRIC WINCH, 500KG, 240V, 7*60M ROPE, GS500BL

  • bvseo_sdk, net_sdk, 2.2.0.2
  • getAggregateRating, method:CLOUD, 296ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
KIO WINCH & HOIST GS500BL
EXCLUSIVE
UOM: UNIT
Price w/GST:
$2,123.95


Order by 12pm Monday, 19 Aug, earliest delivery Friday, 23 Aug

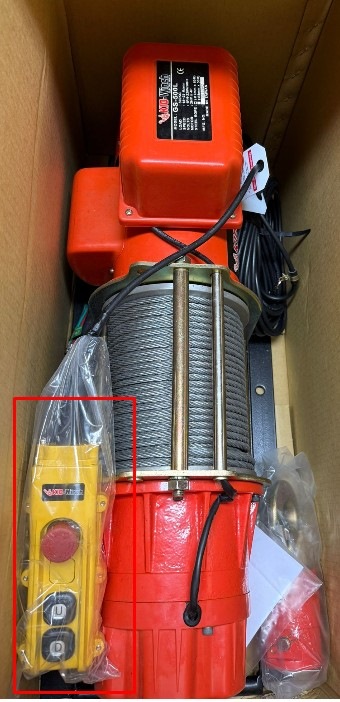

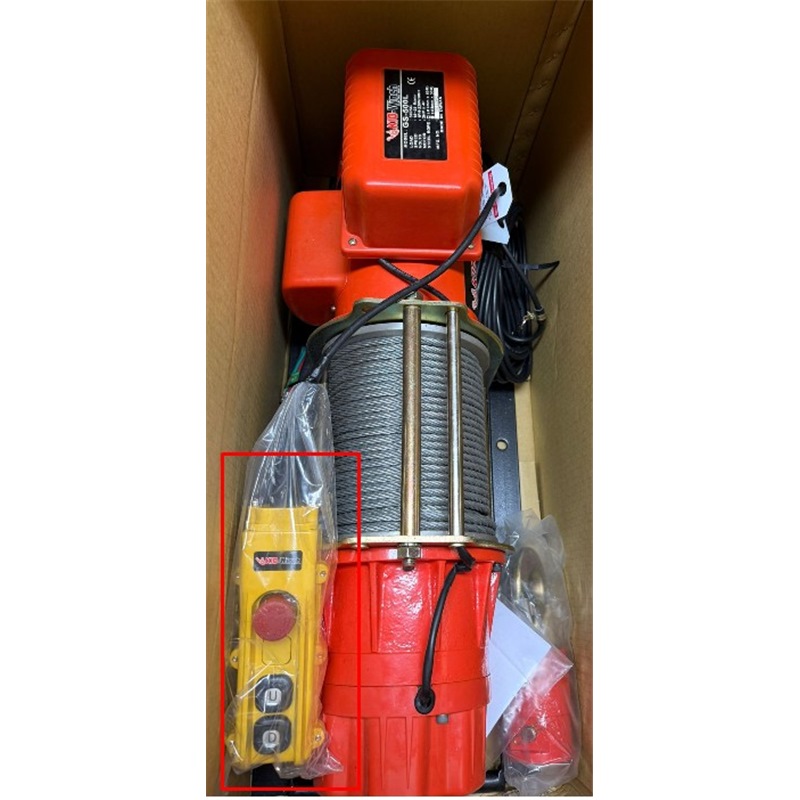

KIO ELECTRIC WINCH, 500KG, 240V, 7*60M ROPE, GS500BL

Positive retention of wire rope on to drum

Electromagnetic spring-spplied fail safe brake

Heavy duty high efficiency ball bearings on all running surfaces

Planetary gearing for maximum mechanical efficiency

Enclosed drum flange to prevents ropes becoming trapped between drum and support castings quietrunning

Model GS-500L
Lifting Capacity kg Wire rope Top layer 500
Lifting Speed First layer: 18 m/Min
Top Layer: 23 m/Min
Motor Rating IP44 1.8 x 4 kw/poles
Maximum Lifting Height 58m
Wire Rope Diameter: 7mm
Length: 60m
Drum Dimension Width: 210 mm
Drum diameter: 90mm
Dlange Diameter: 180mm
Mounting bolt pattern 255x165mm
Net Weight 68kg
