B&N PROFESSIONAL BENCH DRILL PRESS, 350W, BND1301

  • bvseo_sdk, net_sdk, 2.2.0.2
  • getAggregateRating, method:CLOUD, 296ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
B&N BND1301
EXCLUSIVE
UOM: UNIT
Price w/GST:
$129.80


350W Motor
Cast iron working table, Cast iron base
Front emergency switch
J2513-B16 Chuck + Chuck guard
Cast aluminum Belt Pulley

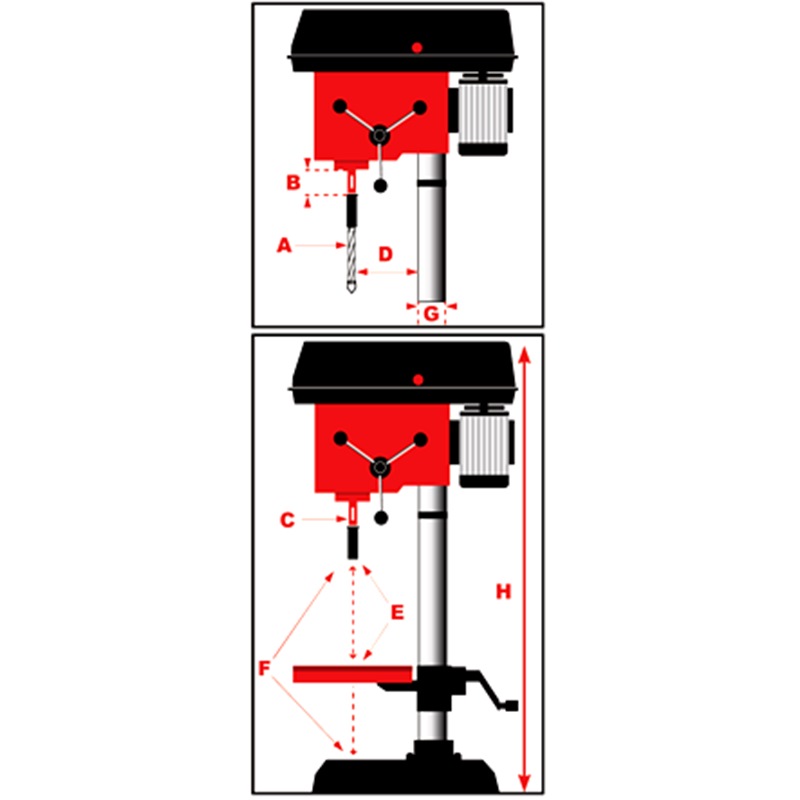

A Max Drilling Diameter (mm) Φ13mm(1/2”)
  Motor Power (W) 350
  Chuck Capacity (mm) 1.5-13
B Spindle Travel (mm) 50
  Class Of Speed 5
  Speed 50Hz 620-2620R.P.M.
  Speed 60Hz 740-3140R.P.M.
C Spindle Taper B16
D Max. distance from spindle axis
to surface of column (mm)
105
E Max. distance from spindle end
to surface of table (mm)
220
F Max. distance from spindle end
to surface of base (mm)
300
  Swing (mm) 210
  Table Size (mm) 160X160
  Base Size (mm) 300X195
G Column Diameter (mm) Φ46
H Height (mm) 580
  Net Weight/Gross Weight (Kg) 16/17
  Packing Size (mm) 430X340X230
