B&N PROFESSIONAL BENCH DRILL PRESS W/LASER, 375W, BND1302L

  • bvseo_sdk, net_sdk, 2.2.0.2
  • getAggregateRating, method:CLOUD, 20ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
B&N™ BND1302L
EXCLUSIVE
UOM: UNIT
Price w/GST:
$228.00


Order by 12pm Monday, 26 Aug, earliest delivery Thursday, 29 Aug

375W Motor

Cast iron working table, Cast iron base

Front emergency switch

J2513-B16 Chuck + Chuck guard

Cast iron belt Pulley

Equipped with Cross Laser Light

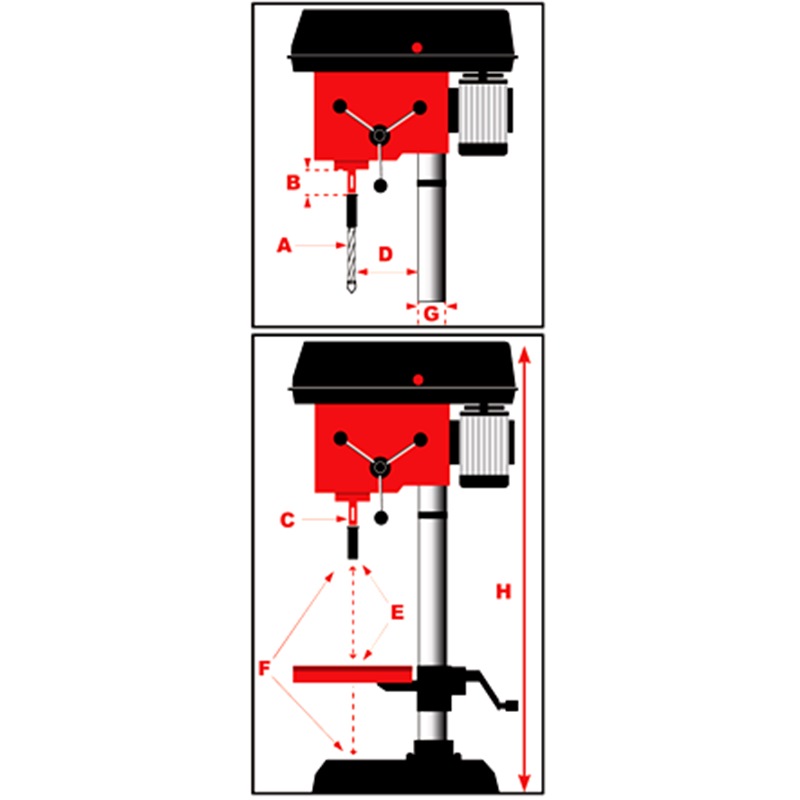

A Max Drilling Diameter (mm) Φ13mm(1/2”)
Motor Power (W) 375
Chuck Capacity (mm) 1.5-13
B Spindle Travel (mm) 60
Class Of Speed 5
Speed 50Hz 620-2620R.P.M.
Speed 60Hz 740-3140R.P.M.
C Spindle Taper B16
D Max. distance from spindle axis
to surface of column (mm)
130
E Max. distance from spindle end
to surface of table (mm)
255
F Max. distance from spindle end
to surface of base (mm)
370
Swing (mm) 260
table Size (mm) 200X200
Base Size (mm) 340X210
G Column Diameter (mm) Φ58
H Height (mm) 680
Net Weight/Gross Weight (Kg) 25/27
Packing Size (mm) 555X400X260
