B&N PROFESSIONAL BENCH DRILL PRESS W/LASER, 550W, BND1601L

  • bvseo_sdk, net_sdk, 2.2.0.2
  • getAggregateRating, method:CLOUD, 14ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
B&N™ BND1601L
EXCLUSIVE
UOM: UNIT
Price w/GST:
$288.90


Order by 12pm Thursday, 18 Jul, earliest delivery Tuesday, 23 Jul

550W Motor
Cast iron working table, Cast iron base
Front emergency switch
J2516-B16 Chuck + Chuck guard
Cast iron belt Pulley
Rack lifting system
Equipped with Cross Laser Light

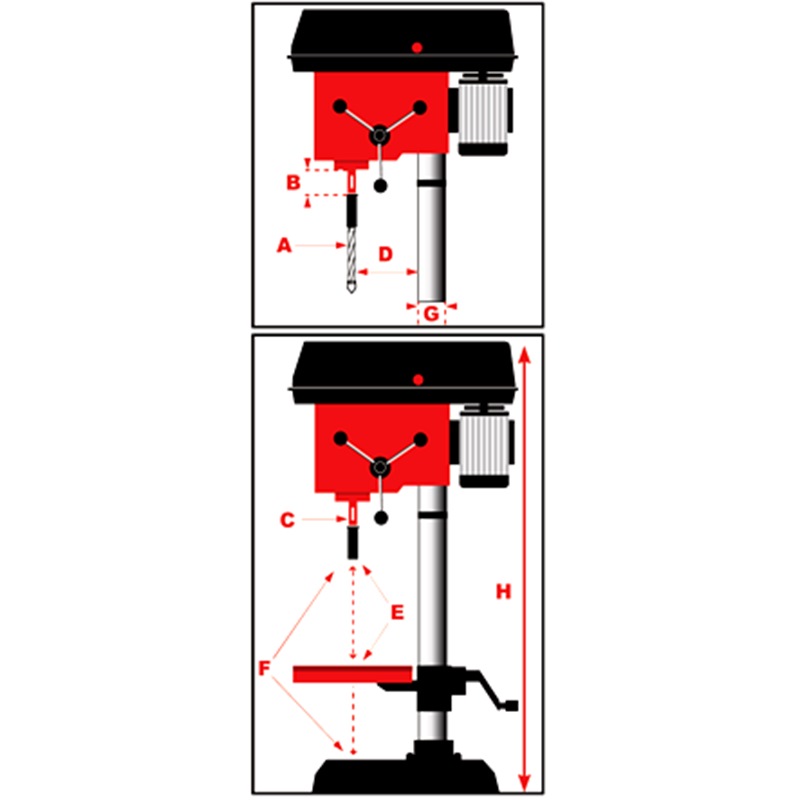

A Max Drilling Diameter (mm) Φ16mm(5/8”)
Motor Power (W) 550
Chuck Capacity (mm) 3-16
B Spindle Travel (mm) 80
Class Of Speed 16
Speed 50Hz 180-2770R.P.M.
Speed 60Hz 220-3320R.P.M.
C Spindle Taper MT2
D Max. distance from spindle axis
to surface of column (mm)
162.5
E Max. distance from spindle end
to surface of table (mm)
450
F Max. distance from spindle end
to surface of base (mm)
630
Swing (mm) 325
Table Size (mm) Φ290
Base Size (mm) 420X250
G Column Diameter (mm) Φ72
H Height (mm) 980
Net Weight/Gross Weight (Kg) 42/45
Packing Size (mm) 770X450X260
