B&N PROFESSIONAL BENCH DRILL PRESS, 550W, BND2001

  • bvseo_sdk, net_sdk, 2.2.0.2
  • getAggregateRating, method:CLOUD, 296ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
B&N BND2001
EXCLUSIVE
UOM: UNIT
Price w/GST:
$368.85


550W Motor
Cast iron working table, Cast iron base
Front emergency switch
J2120-B22 Chuck + Chuck guard
Cast iron belt Pulley
Rack lifting system

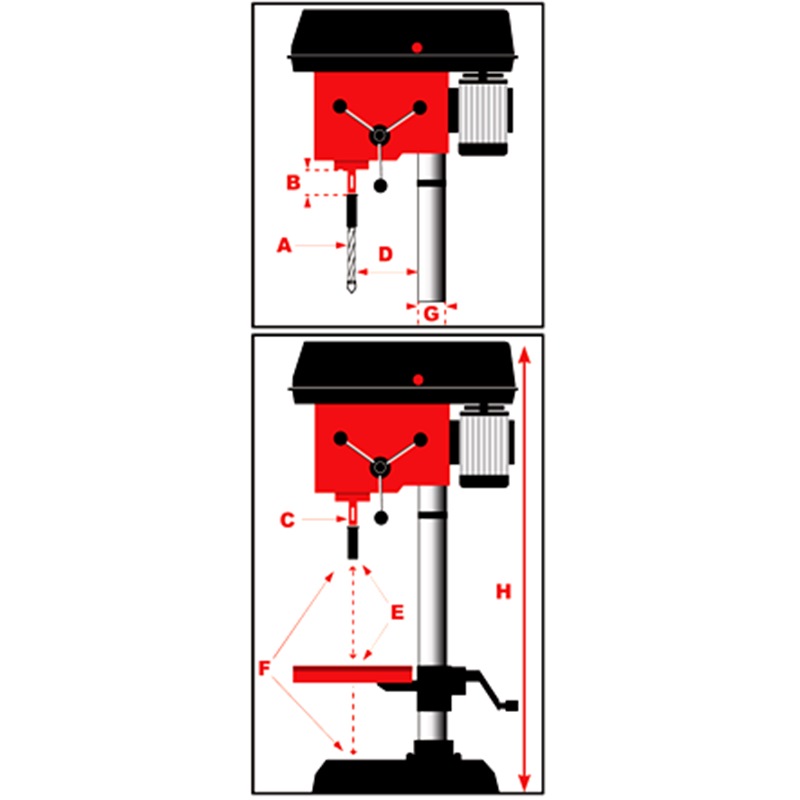

A Max Drilling Diameter (mm) Φ20mm(3/4”)
  Motor Power (W) 550
  Chuck Capacity (mm) 5-20
B Spindle Travel (mm) 85
  Class Of Speed 16
  Speed 50Hz 180-2770R.P.M.
  Speed 60Hz 220-3320R.P.M.
C Spindle Taper MT2
D Max. distance from spindle axis
to surface of column (mm)
180
E Max. distance from spindle end
to surface of table (mm)
620
F Max. distance from spindle end
to surface of base (mm)
810
  Swing (mm) 360
  Table Size (mm) 290X290
  Base Size (mm) 460X270
G Column Diameter (mm) Φ72
H Height (mm) 1200
  Net Weight/Gross Weight (Kg) 58/60
  Packing Size (mm) 1010X490X275
