BND2801H

UOM: UNIT

EXCLUSIVE

Quantity :

Add to Cart

Add to Wishlist

Free Delivery Above $100, Arrives by Friday, 14 Aug

900W Motor

Cast iron working table, Cast iron base

Front emergency switch

Cast iron feeding handle

J2120-B22 Chuck + Chuck guard

Cast iron belt Pulley

Rack lifting system

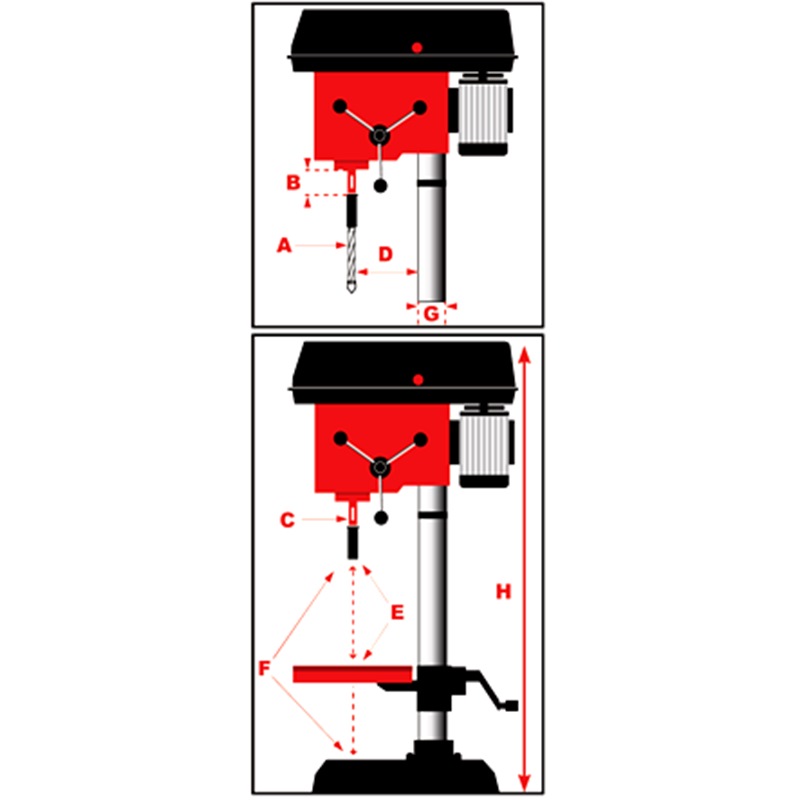

A	Max Drilling Diameter (mm)	Φ25mm(1”)
	Motor Power (W)	900
	Chuck Capacity (mm)	5-20
B	Spindle Travel (mm)	85
	Class Of Speed	12
	Speed 50Hz	280-2830R.P.M.
	Speed 60Hz	340-2860R.P.M.
C	Spindle Taper	MT3
D	Max. distance from spindle axis to surface of column (mm)	176
E	Max. distance from spindle end to surface of table (mm)	685
F	Max. distance from spindle end to surface of base (mm)	1175
	Swing (mm)	352
	table Size (mm)	290X290
	Base Size (mm)	460X270
G	Column Diameter (mm)	Φ80
H	Height (mm)	1600
	Net Weight/Gross Weight (Kg)	71/75
	Packing Size (mm)	1140X490X275
