B&N PROFESSIONAL BENCH DRILL PRESS, 1500W, BND3201H

  • bvseo_sdk, net_sdk, 2.2.0.2
  • getAggregateRating, method:CLOUD, 16ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
B&N™ BND3201H
EXCLUSIVE
UOM: UNIT
Price w/GST:
$957.65


Order by 12pm Wednesday, 11 Dec, earliest delivery Monday, 16 Dec

1500W Motor

Cast iron working table, Cast iron base

Front emergency switch

Cast iron feeding handle

J2120-B22 Chuck + Chuck guard

Cast iron belt Pulley

Rack lifting system

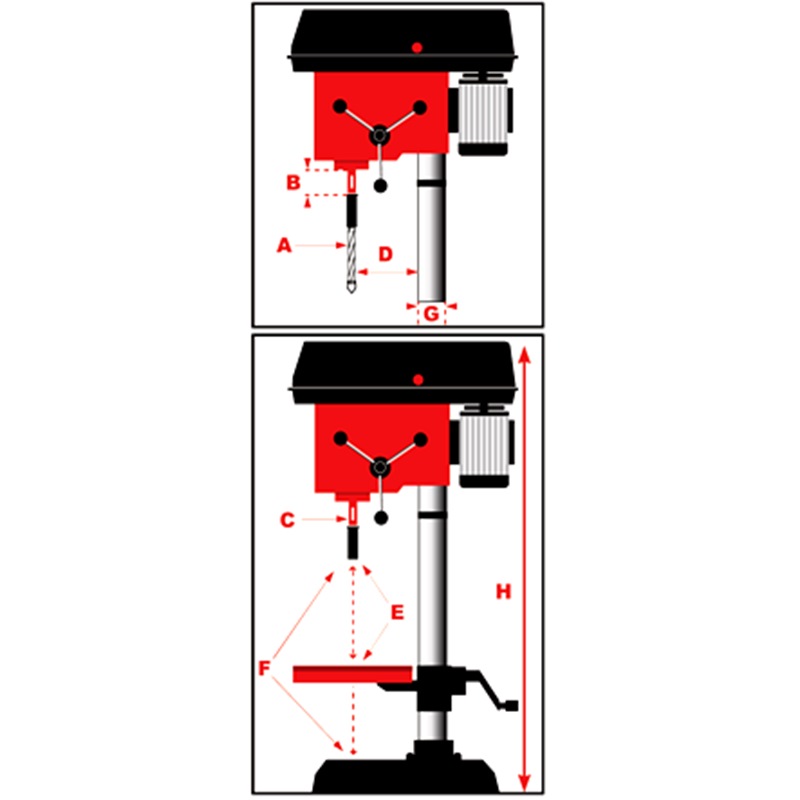

A Max Drilling Diameter (mm) Φ32mm(1-1/4”)
  Motor Power (W) 1500
  Chuck Capacity (mm) 5-20
B Spindle Travel (mm) 120
  Class Of Speed 12
  Speed 50Hz 150-2450R.P.M.
  Speed 60Hz 180-2940R.P.M.
C Spindle Taper MT4
D Max. distance from spindle axis
to surface of column (mm)
255
E Max. distance from spindle end
to surface of table (mm)
745
F Max. distance from spindle end
to surface of base (mm)
1205
  Swing (mm) 510
  table Size (mm) 420X480
  Base Size (mm) 575X425
G Column Diameter (mm) Φ92
H Height (mm) 1710
  Net Weight/Gross Weight (Kg) 125/130
  Packing Size (mm) 1415X650X305
