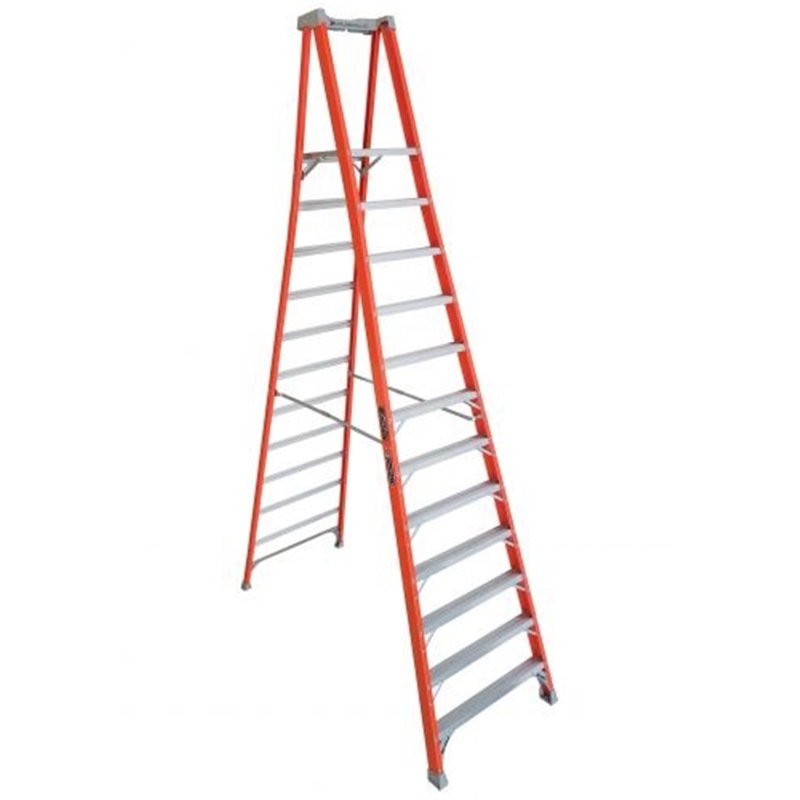

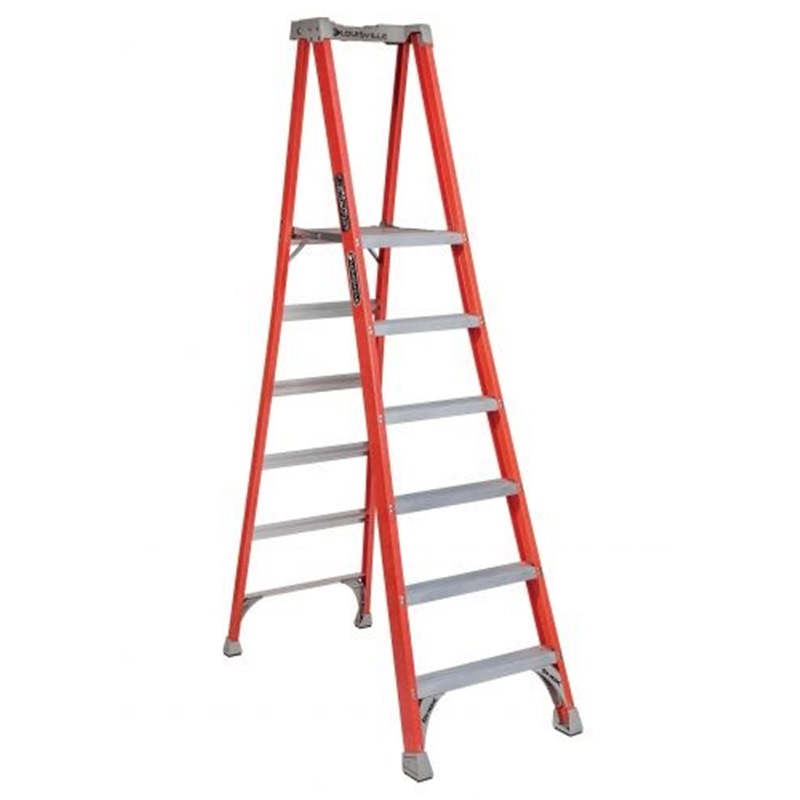

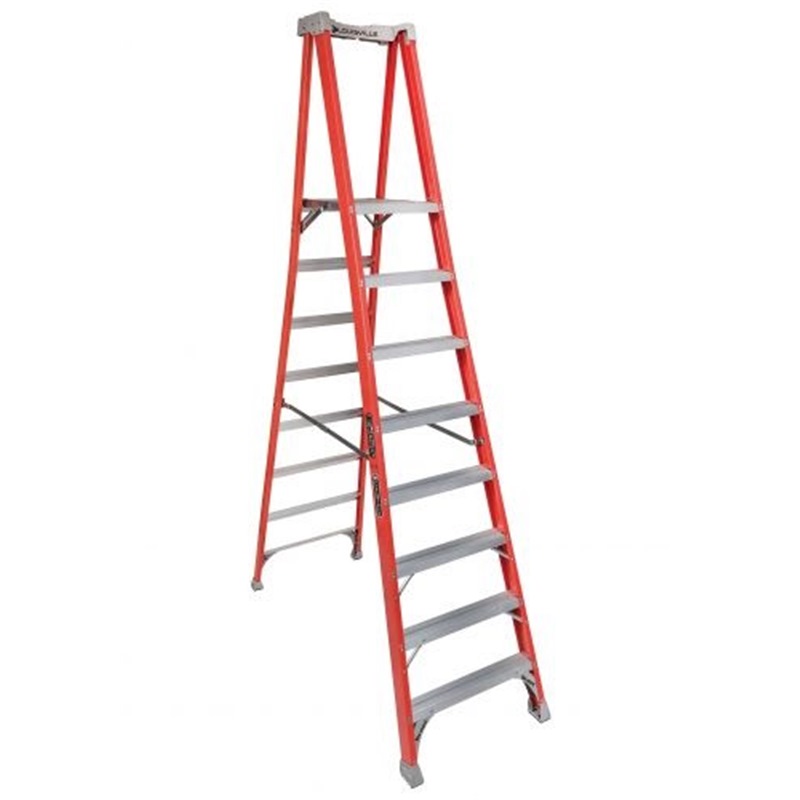

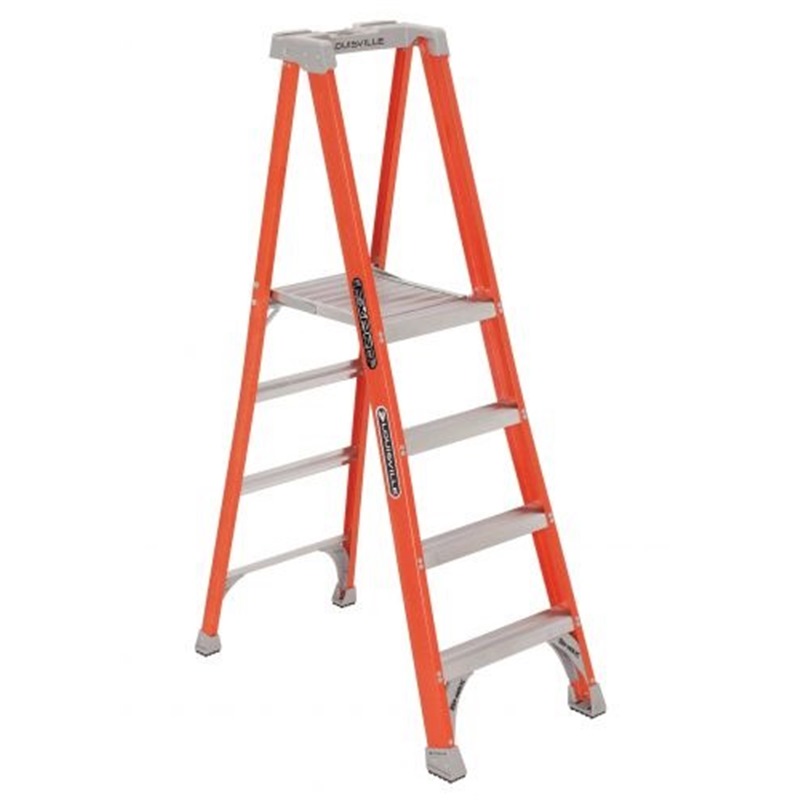

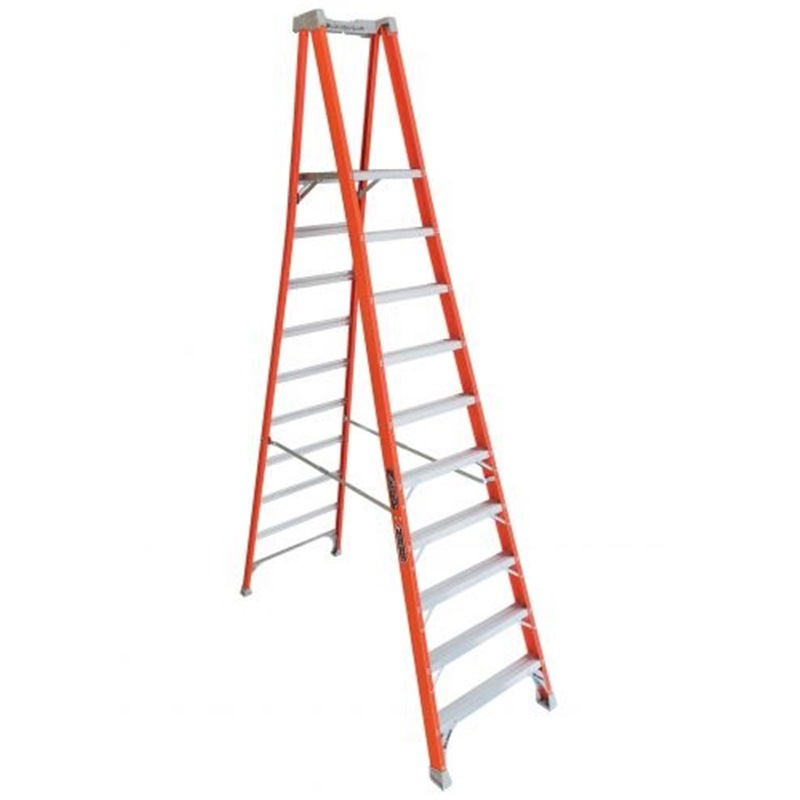

LOUISVILLE HD PRO EXTENDED RAIL FIBERGLASS PODIUM LADDER FXP1700 SERIES

  • bvseo_sdk, net_sdk, 2.2.0.2
  • getAggregateRating, method:CLOUD, 531ms
  • REVIEWS, PRODUCT
  • bvseo-msg: Execution timed out, exceeded 500ms;
LOUISVILLE LADDER FXP1704
EXCLUSIVE
UOM: UNIT
Price w/GST:
$359.52


Model:
Multifunctional ProTop with Multiple Tool Slots and Magnet
SHOX with Superior Impact Absorption
Da Boot Slip Resistant Boot
Extended Handrail for Added Comfort and Safety
Double-Rivet Step Construction
Wide Back Braces
Load Capcity 300lbs

Description FXP1704 FXP1705 FXP1706 FXP1708 FXP1710 FXP1712
Style Platform Platform Platform Platform Platform Platform
Duty Rating Type IA Type IA Type IA Type IA Type IA Type IA
Load Capacity 300 lbs 300 lbs 300 lbs 300 lbs 300 lbs 300 lbs
Size 4' 5' 6' 8' 10' 12'
Number of Steps 4 5 6 8 10    12
Rung Type Standard Step Standard Step Standard Step Standard Step Standard Step Standard Step
Step Depth 3'' 3'' 3'' 3'' 3'' 3''
Material Fiberglass Fiberglass Fiberglass Fiberglass Fiberglass Fiberglass
Platform Length 17 5/8'' 17 5/8'' 17 5/8'' 17 5/8'' 17 5/8'' 17 5/8''
Platform Width 14 1/2'' 14 1/2'' 14 1/2'' 14 1/2'' 14 1/2'' 14 1/2''
Platform Back Width 14 1/2'' 14 1/2'' 14 1/2'' 14 1/2'' 14 1/2'' 14 1/2''
Height to Platform 3' 10'' 4' 9'' 5' 8'' 7' 7'' 9' 6'' 11' 5''
Max. Standing Height 3' 10'' 4' 9'' 5' 8'' 7' 7'' 9' 6'' 11' 5''
Max. Reach 10' 4'' 11' 4'' 12' 3'' 14' 2'' 16' 1'' 17' 10''
Approx. Spread 43 3/4'' 50 3/8'' 56 3/8'' 70'' 82 1/4'' 92''
Bottom Width 24 3/4'' 26 1/8'' 27 5/8'' 30 3/4'' 33 3/4'' 36 3/4''
Closed Cubic Feet 11 3/4" 14 1/4" 17 23 1/3" 30 3/7" 38 3/8"
Closed Height 80'' 92'' 104'' 128'' 152'' 176''
Closed Depth 10 1/4'' 10 1/4'' 10 1/4'' 10 1/4'' 10 1/4'' 10 1/4''
Closed Width 24 3/4'' 26 1/8'' 27 5/8'' 30 3/4'' 33 3/4'' 36 3/4''
