FLUKE DIGITAL MULTIMETER 116

  • bvseo_sdk, net_sdk, 2.2.0.2
  • getAggregateRating, method:CLOUD, 328ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
FLUKE INSTRUMENTS 116
UOM: PC
Price w/GST:
$324.21


Order by 12pm Thursday, 19 Oct, earliest delivery Tuesday, 24 Oct

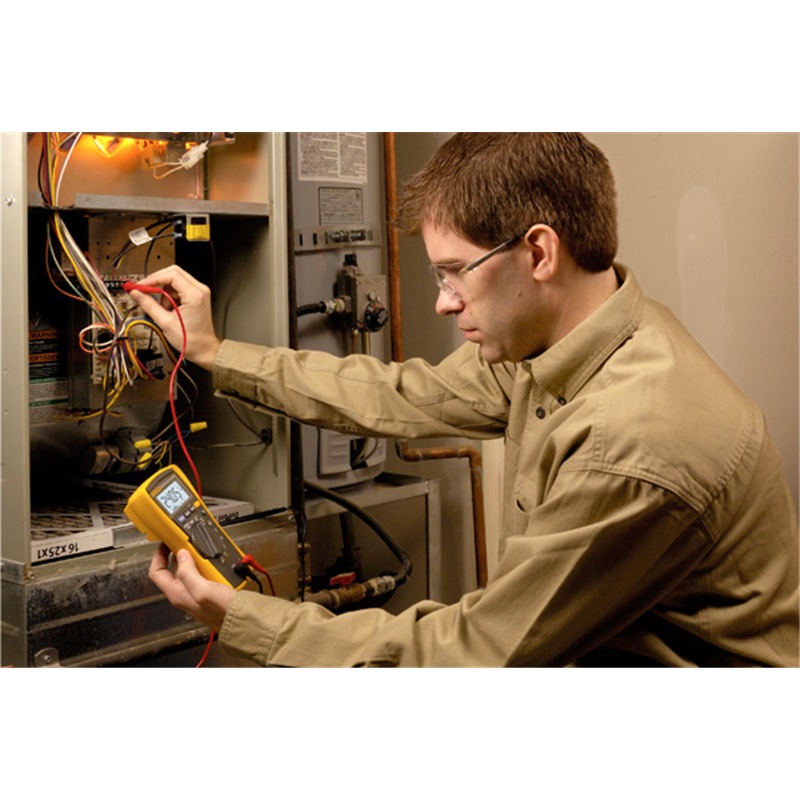

With the ability to take temperature and microamp measurements, the Fluke 116 Digital Multimeter has everything you need to help you quickly troubleshoot problems with HVAC equipment and flame sensors.
The Fluke 116 measures resistance, continuity, frequency and capacitance.
Fluke 116 multimeters are independently tested for safe use in CAT III 600 V Environments.
DC millivolts Range/resolution 600.0 mV / 0.1 mV
  Accuracy ±([% of reading] + [counts]): 0.5% + 2
DC volts Range/resolution 6.000 V / 0.001 V
    60.00 V / 0.01 V
    600.00 V / 0.1 V
  Accuracy ±([% of reading] + [counts]): 0.5% + 2
Auto volts Range/resolution 600.0 V / 0.1 V
  Accuracy 2.0% + 3 (DC, 45 Hz to 500 Hz)
    4.0% + 3 (500 Hz to 1 kHz)
AC millivolts1 True RMS Range/resolution 600.0 mV / 0.1 mV
  Accuracy 1.0% + 3 (DC, 45 Hz to 500 Hz)
    2.0% + 3 (500 Hz to 1 kHz)
AC volts1 True RMS Range/resolution 6.000 V / 0.001 V
    60.00 V / 0.01 V
    600.0 V / 0.1 V
  Accuracy 1.0% + 3 (DC, 45 Hz to 500 Hz)
    2.0% + 3 (500 Hz to 1 kHz)
Continuity Range/resolution 600 Ω / 1 Ω
  Accuracy Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of
    500 μs or longer.
Ohms Range/resolution 600.0 Ω / 0.1 Ω
    6.000 kΩ / 0.001 kΩ
    60.00 kΩ / 0.01 kΩ
    600.0 kΩ / 0.1 kΩ
    6.000 MΩ / 0.001 MΩ
  Accuracy 0.9% + 1
  Range/Resolution 40.00 MΩ / 0.01 MΩ
  Accuracy 5% + 2
Diode Test Range/resolution 2.00 V / 0.001 V
  Accuracy 0.9% + 2
Capacitance Range/resolution 1000 nF / 1 nF
    10.00 μF / 0.01 μF
    100.0 μF / 0.1 μF
    9999 μF / 1 μF
    100 μF to 1000 μF
  Accuracy 1.9% + 2
  Range/resolution > 1000 μF
  Accuracy 5% + 20%
Lo-Z Capacitance Range 1 nF to 500 μF
  Accuracy 10% + 2 typical

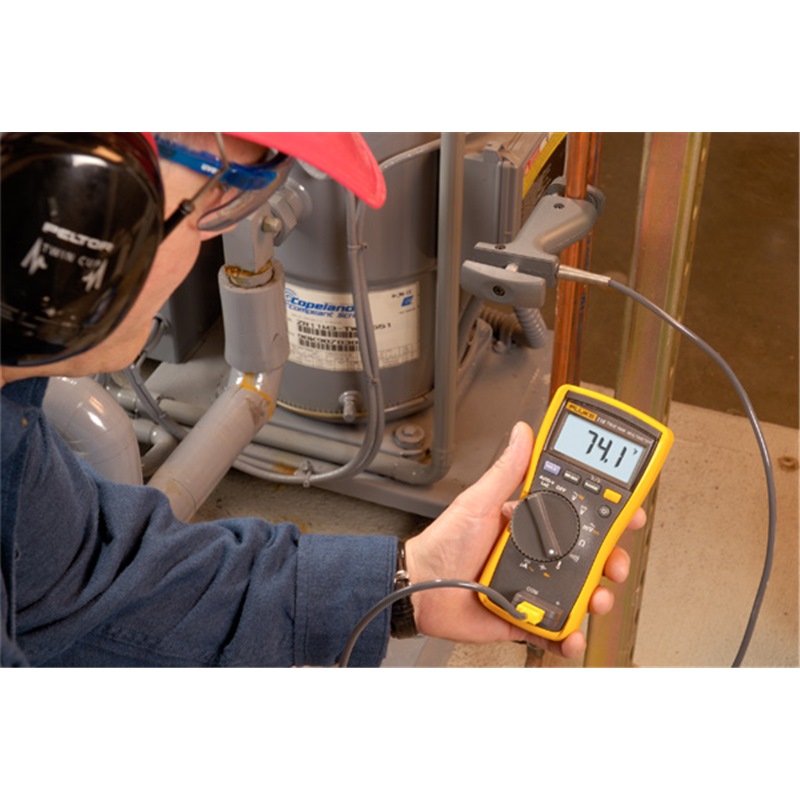

Temperature² Range/resolution -40°C to 400°C / 0.1°C
(Type-K thermocouple) Accuracy 1% + 10²
  Range/resolution -40°F to 752°F / 0.2°F
  Accuracy 1% + 18²
AC μA true-rms (45 Hz to 500 Hz) Range/resolution 600.0 μA / 0.1 μA
  Accuracy 1.5% + 3
DC μamps Range/resolution 600.0 μA / 0.1 μA
  Accuracy 1.0% + 2
Hz (V or A input)² Range/resolution 99.99 Hz / 0.01 Hz
    999.99 Hz / 0.1 Hz
    9.999 Hz / 0.001 Hz
    50.00 Hz / 0.01 Hz
  Accuracy 0.1% + 2
Name File Type Size Download
Fluke 116 Users Manual .pdf 572 KB
Fluke 116 Multimeter Data Sheet .PDF 746 KB
Fluke Extended Specs For 114, 115, 116, 117 .PDF 102 KB
