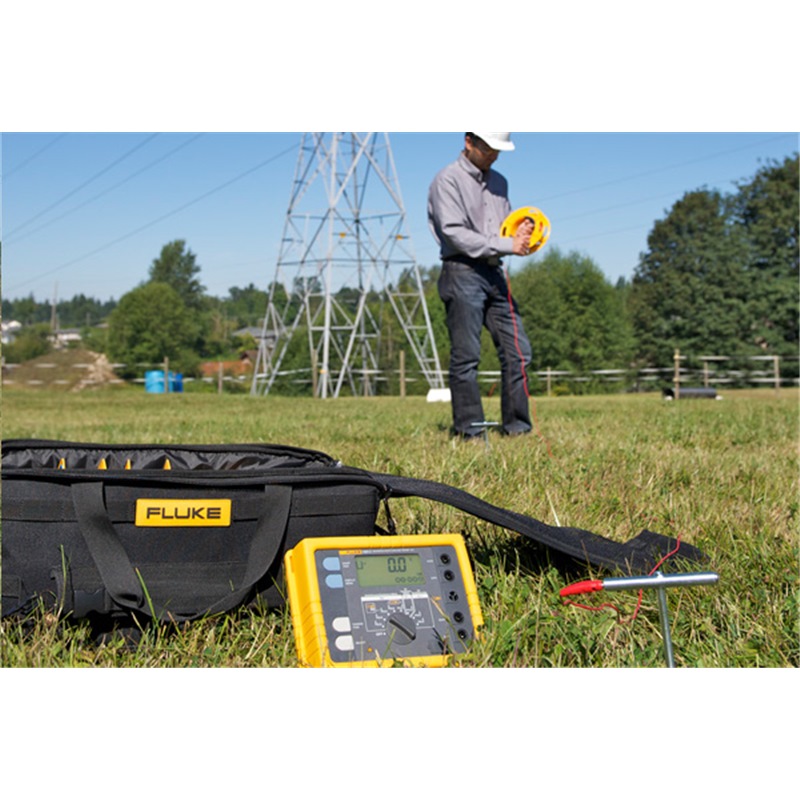

FLUKE EARTH GROUND TESTER 1623-2

  • bvseo_sdk, net_sdk, 2.2.0.2
  • getAggregateRating, method:CLOUD, 296ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
FLUKE 1623-2
UOM: PC
Price w/GST:
$3,199.30


The Fluke 1623-2 GEO Earth Ground Tester offers data storage and download capabilities via USB port.

World class accessories will simplify and speed up testing time.

Fluke 1623-2 GEO Earth Ground Tester summary

3- and 4-pole Fall-of-Potential, earth resistance loop testing

4-pole Soil Resistivity testing

Selective earth ground rod testing using 1 clamp

Stakeless earth ground rod testing using 2 clamps

IP56 rated for outdoor use

Rugged carrying case

USB data storage and transfer

Operating Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -30°C to 60°C (-22°F to 140°F)
Temperature coefficient ±0.1% of reading/°C < 18°C > 28°C
Intrinsic error Refers to the reference Temperature range and is guaranteed For 1 year
Operating error Refers to the operating Temperature range and is guaranteed For 1 year
Climatic class C1 (IEC 654-1), -5°C to +45°C (23° to +115° F), 5% to 95% RH
Protective Type IP56 For case, IP40 For Battery door according to EN60529
Safety Protection by double and/or reinForced insulation. Max. 50 V to earth. IEC61010-1: 300V CAT II, Pollution degree 2
EMC (emission immunity) IEC61326-1: Portable
Quality system Developed, designed and manufactured according to DIN ISO 9001
External Voltage V ext, Max = 24 V (DC, AC < 400 Hz), measurement inhibited For Hgher values
V ext rejection > 120 dB (162⁄3, 50, 60, 400 Hz)
Measuring Time Typical 6 Seconds
Max. overLoad 250 V rms (pertains to misuse)
Auxiliary Power 6 x 1.5 V Alkaline (Type AA LR6)
Battery life span Typical > 3,000 measurements
Dimension (W x H x D) 250 x 133 x 187 mm (9.75 x 5.25 x 7.35 in)
Name File Type Size Download
Fluke 1623-2 Users Manual .pdf 2 MB
Fluke 1623-2 And 1625-2 Technical Data Sheet .PDF 472 KB
