FLUKE 1625-2
Price w/GST:

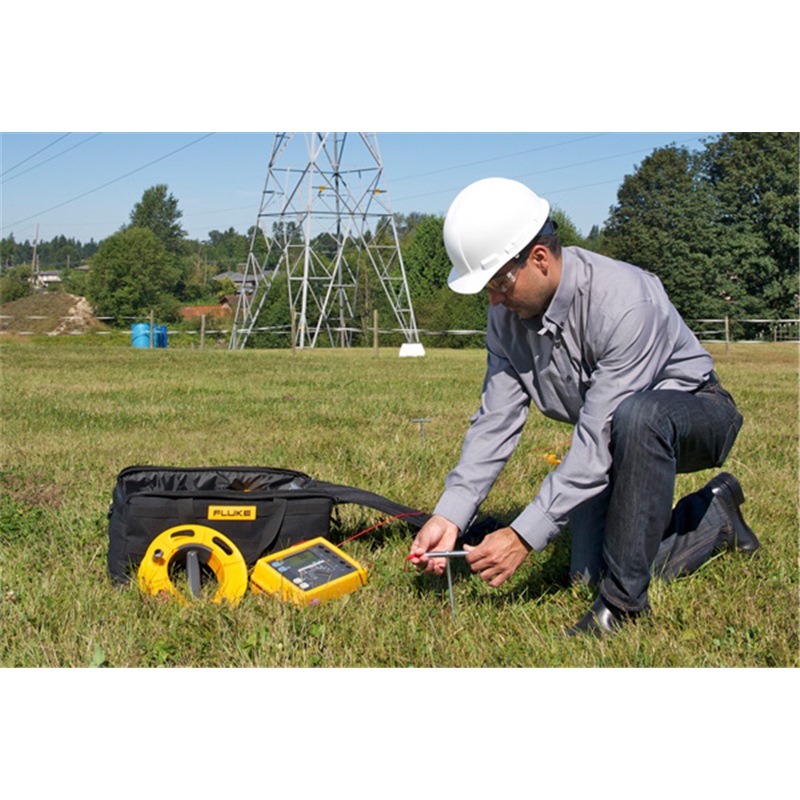

The Fluke 1625-2 GEO Earth Ground Tester offers data storage and download capabilities via USB port.

World class accessories will simplify and speed up testing time.

3- and 4-pole Fall-of-Potential, earth resistance loop testing

4-pole Soil Resistivity testing

Selective earth ground rod testing using 1 clamp

Stakeless earth ground rod testing using 2 clamps

IP56 rated for outdoor use

Rugged carrying case

USB data storage and transfer

Automatic Frequency Control (AFC) - identifies existing interference and chooses a measurement frequency to minimize its effect, providing more accurate earth ground value

R* measurement – calculates earth ground impedance at 55 Hz to more accurately reflect the earth ground resistance that a fault-to earth ground would see

Adjustable limits - for quicker testing

Storage Temperature -30°C to 60°C (-22°F to 140°F)
Temperature coefficient ±0.1% of reading/°C < 18°C > 28°C
Type of protection IP56 For case, IP40 For Battery door according to EN60529
Max Voltage Warning – socket "clamp" to socket E, ES, S or H
Urms = 0 V
Sockets E, ES, S or H to each other in any combination, Max. Urms = 250 V (pertains to misuse)
Safety Protection by double and/or reinForced insulation. Max. 50 V to earth per IEC61010-1. 300 V CAT II, Pollution degree 2
Quality Standard Developed, designed and manufactured to comply with DIN ISO 9001
External field influence Complies with DIN 43780 (8/76)
Auxiliary Power 6 x 1.5 V alkaline (IEC LR6 or Type AA)
Battery life span With IEC LR6/Type AA: typ. 3,000 measurements (RE+RH ≤ 1 kΩ)
With IEC LR6/Type AA: typ. 6,000 measurements (RE + RH > 10 kΩ)
Dimension (W x H x D) 250 x 133 x 187 mm (9.75 x 5.25 x 7.35 in)
Weight ≤ 1.1 kg (2.43 lb) without accessories 7.6 kg (16.8 lb) incl. accessories and batteries in carrying case
Case material Polyester
Name File Type Size Download
Fluke 1625-2 Users Manual .pdf 3 MB
Fluke 1623-2 And 1625-2 Technical Data Sheet .PDF 472 KB
