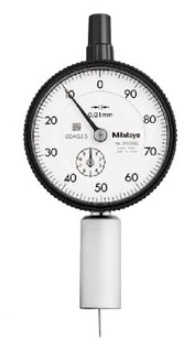

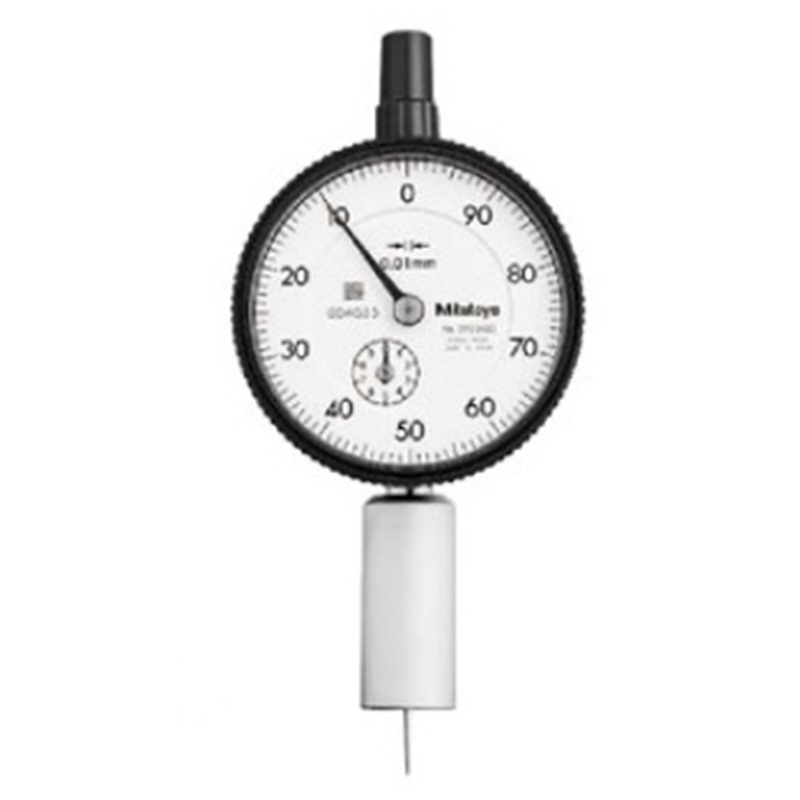

MITUTOYO SERIES 547, 7 DIAL DEPTH GAUGE

  • bvseo_sdk, net_sdk, 2.2.0.2
  • getAggregateRating, method:CLOUD, 546ms
  • REVIEWS, PRODUCT
  • bvseo-msg: Execution timed out, exceeded 500ms;
MITUTOYO 7222
UOM: PC
Price w/GST:
$144.45


Model:
ABSOLUTE Digimatic Depth Gage can keep track of the origin point once set for the entire life of the battery. (series 547)
Wide probing range is available with the supplied extension rod.
Bottom surface of the base is hardened, ground and lapped for highest degree of flatness.
Designed with a back plunger type dial indicator for upward facing readings. (7231, 7237, 7238)
With SPC data output. (series 547)
Model Range Feature
547-211 0-200mm Base Size: 63.5x16mm, Flatness: 5um
547-212 0-200mm Base Size: 101.6x16mm, Flatness: 5um
547-217 0-8" Base Size: 2.5"x0.63", Flatness: 0.0002", Inch/Metric
547-218 0-8" Base Size: 4"x0.63", Flatness: 0.0002", Inch/Metric
547-251 0-200mm Base Size: 63.5x16mm, Flatness: 2um
547-252 0-200mm Base Size: 101.6x16mm, Flatness: 2um
547-257 0-8" Base Size: 2.5"x0.63", Flatness: 0.00008"; Inch/Metric
547-258 0-8" Base Size: 4"x0.63", Flatness: 0.00008", Inch/Metric
7210 0-10mm Base Size: 40x16mm, Flatness: 5um, with Needle Probe
7211 0-200mm Base Size: 63.5x16mm, Flatness: 5um
7212 0-200mm Base Size: 101.6x16mm, Flatness: 5um
7213 0-210mm Base Size: 63.5x16mm, Flatness: 5um
7214 0-210mm Base Size: 101.6x16mm, Flatness: 5um
7217 0-8" Base Size: 2.5"x0.63", Flatness: 0.0002"
7217S 0-0.4" Base Size: 2.5"x0.63", Flatness: 0.0002"
7218 0-8" Base Size: 4"x0.63", Flatness: 0.0002"
7218S 0-0.4" Base Size: 4"x0.63", Flatness: 0.0002"
7220 0-200mm Base Size: 100x18mm, Flatness: 5um
7221 0-200mm Base Size: 150x18mm, Flatness: 5um
7222 0-10mm Base Dia.: 16mm, Flatness: 5um, with Needle Probe
7223 0-10mm Base Dia.: 25mm, Flatness: 5um
7224 0-10mm Base Dia.: 40mm, Flatness: 5um
7231 0-200mm Base Size: 63.5x16mm, Flatness: 5um
7237 0-8" Base Size: 2.5"x0.63", Flatness: 0.0002"
7238 0-8" Base Size: 4"x0.63", Flatness: 0.0002"
Name File Type Size Download
MITUTOYO SERIES 547, 7 DIAL DEPTH GAUGE .pdf 928 KB
