FLUKE INFRARED THERMOMETER 566

  • bvseo_sdk, net_sdk, 2.2.0.2
  • getAggregateRating, method:CLOUD, 0ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
FLUKE 566
UOM: PC
Price w/GST:
$705.45


Order by 12pm Monday, 16 Dec, earliest delivery Thursday, 19 Dec

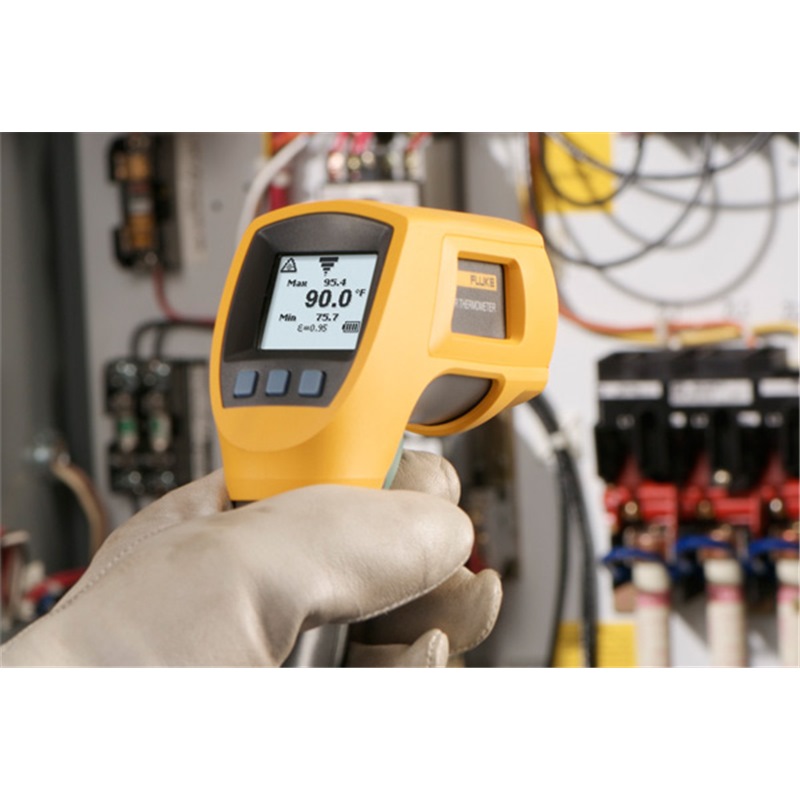

The Fluke 566 two-in-one contact and non contact thermometer can stand up to tough industrial, electrical, and mechanical environments.

Infrared Temperature range -40°C to 650°C (-40°F to 1202°F)
Infrared accuracy < 0°C (32°F): ±(1.0°C (±2.0°F) + 0.1°/1°C or°F);
> 0°C (32°F): ±1% or ±1.0°C (±2.0°F), whichever is greater
Display resolution 0.1°C / 0.1°F
Infrared spectral response 8 µm to 14 µm
Infrared response Time < 500 msec
Thermocouple Type-K input Temperature range -270°C to 1372°C (-454°F to 2501°F)
Thermocouple Type-K input accuracy -270°C to -40°C ±(1°C + 0.2°/1°C) (-454°F to -40°F: ±(2°F + 0.2°/1°F))
-40°C to 1372°C ±1% or 1°C (-40°F to 2501°F: ±1% or 2°F), whichever is greater
D:S (distance to measurement spot Size) 30:01:00
Laser sighting Single-point laser < 1 mw Output Class 2 (II) operation, 630 nm to 670 nm
Minimumspot Size 19 mm (0.75 in)
Emissivity adjustment By built-in table of common Materials or digitAlly adjustable from 0.10 to 1.00 by 0.01
Data storage with date/Time stamp 20 points
PC interface and cable None
Hi/Low alarms Audible and two-Colour visual
Min/Max/Avg/Dif Yes
Display Dot matrix 98 x 96 pixels with function menus
Backlight Two levels, Normal and extra bright For darker environments
Trigger lock Yes
Switchable Celsius and Fahrenheit Yes
Power 2 AA/LR6 Batteries
Battery life If used continuously Laser and backlight on, 12 hours; laser and backlight off, 100 hours
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 60°C (-40°F to 140°F)
Bead thermocouple Type-K range -40°C to 260°C (-40°F to 500°F)
Bead thermocouple Type-K accuracy ±1.1°C (2.0°F) from 0°C to 260°C (32°F to 500°F),
typicAlly within 1.1°C (2.0°F) from -40°C to 0°C (-40°F to 32°F)
Name File Type Size Download
Fluke 56x (561, 566, 568) Users Manual .pdf 1 MB
