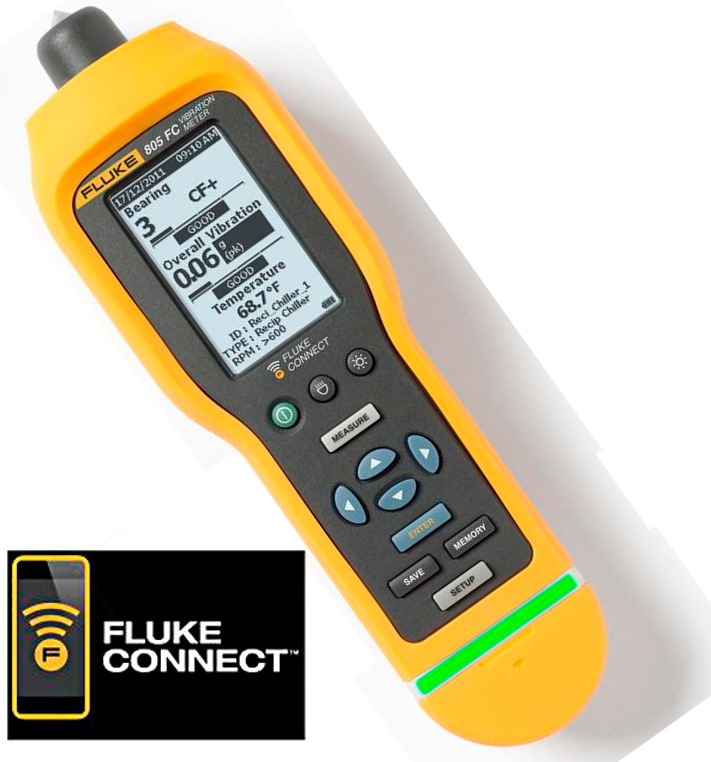

FLUKE VIBRATION TESTER 805FC

805FC*

UOM: PC

Price w/GST:
S$5,068.50

Find In Store

Add to Wishlist Share

Free Delivery Above $100 (Member Only), Arrives by Tuesday, 29 Apr
Item unavailable at Ubi Trade Centre>Check Other Stores

Make go or no-go maintenance decisions with confidence.

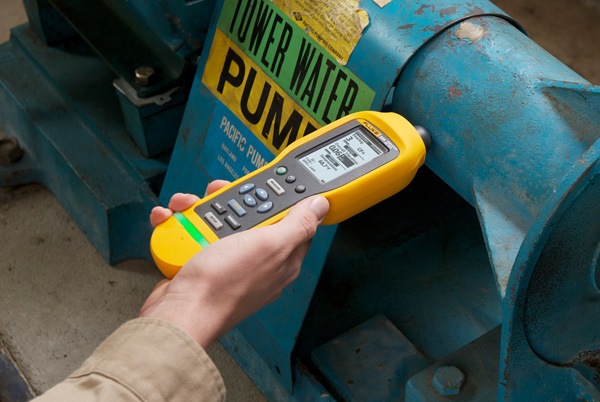

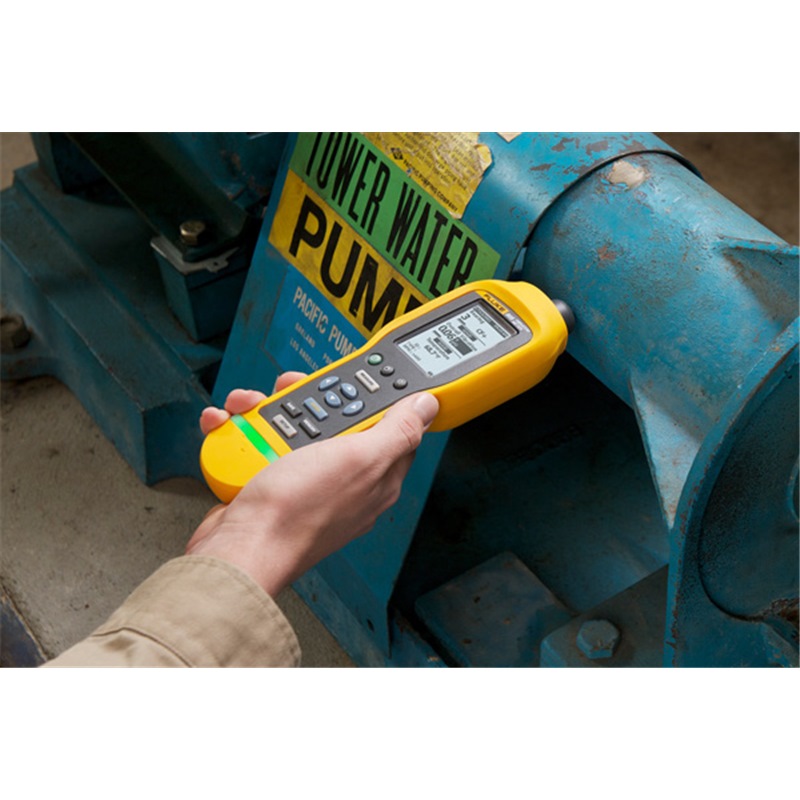

The Fluke 805 FC Vibration Meter is the most reliable vibration screening device available for frontline mechanical troubleshooting teams that need repeatable, severity-scaled readings of overall vibration and bearing condition.

Vibration Meter
Low Frequency Range (Overall measurement)	10 Hz to 1,000 Hz
Hgh Frequency Range (CF+ measurement)	4,000 Hz to 20,000 Hz
Severity levels	Good, satisfactory, unsatisfactory, unacceptable
Vibration limit	50 g peak (100 g peak-peak)
A/D converter	16-bit
Signal to Noise ratio	80 dB
Sampling rate	Low Frequency:20,000 Hz
	Hgh Frequency: 80,000 Hz
Real Time clock backup	Coin Battery
Sensor
Sensitivity	100 mV g ±10%
Measurement range	0.01 g to 50 g
Low Frequency Range (Overall measurement)	10 Hz to 1,000 Hz
Hgh Frequency Range	4,000 Hz to 20,000 Hz
Resolution	0.01 g
Accuracy	At 100 Hz ±5% of measured value
Amplitude Units
Acceleration	g, m/sec²
Velocity	in/sec, mm/sec
Displacement	mils, mm
Infrared Thermometer (Temperature Measurement)
Range	-20°C to 200°C (-4°F to 392°F)
Accuracy	±2°C (4°F)
Focal Length	Fixed, at ~3.8 cm (1.5 in)
External sensor
Fluke supports but does Not provide external sensors
Frequency Range	10 Hz to 1,000 Hz
Bias Voltage (to supply Power)	20 VDC to 22 VDC
Bias Current (to supply Power)	Maximum 5 mA
Firmware
External interfaces	USB 2.0 (Full Speed) communication
Data Capacity	Database on internal flash memory
Upgrade	Through USB
Memory	Up To 3,500 measurements
Radiated Emission
Electrostatic discharge: burst	Standard EN 61000-4-2
Electromagnetic interference	Standard EN 61000-4-3
RE	Standard CISPR 11, Class A
Environmental
Operating Temperature	-20°C to 50°C (-4°F to 122°F)
Storage Temperature	-30°C to 80°C (-22°F to 176°F)
Operating humidity	10% to 95% RH (Non-condensing)
Operating/storage altitude	Sea level to 3,048 Meters (10,000 feet)
IP rating	IP54
Vibration limit	500 g peak
Drop test	1 meter
General Specifications
Battery Type	AA (2) Lithium Iron Disulfide
Battery life	250 measurements
Size (L x W x H)	24.1 x 7.1 x 5.8 cm (9.5 x 2.8 x 2.3 in)
Weight	0.40 kg (0.89 lb)
Connectors	USB Mini-B 7-pin, stereo audio Output jack (3.5 mm Audio Plug), external sensor jack (SMB connector)
