Dimensions(w x h x d)
|
113 x 78 x 73 mm
|
|
|
Movement sensor
|
|
|
230-240 V/50 Hz
|
|
|
Passive infrared
|
|
|
indoors and outdoors
|
|
|
Wall
|
Recommended installation height
|
2.00 m
|
max. output (resistive load, incandescent lamp)
|
600 W
|
max. output (uncorrected, inductive, cos φ = 0.5, e.g. fluorescent lamps)
|
500 VA max.
|
max. output (series-corrected)
|
500 W
|
max. output (parallel corrected, with C ≤ 45.6 µF)
|
500 W
|
max. output (electronic ballasts, capacitive, e.g. low-energy lamps)
|
4 ea. max., C ? 88 µF
|
|
|

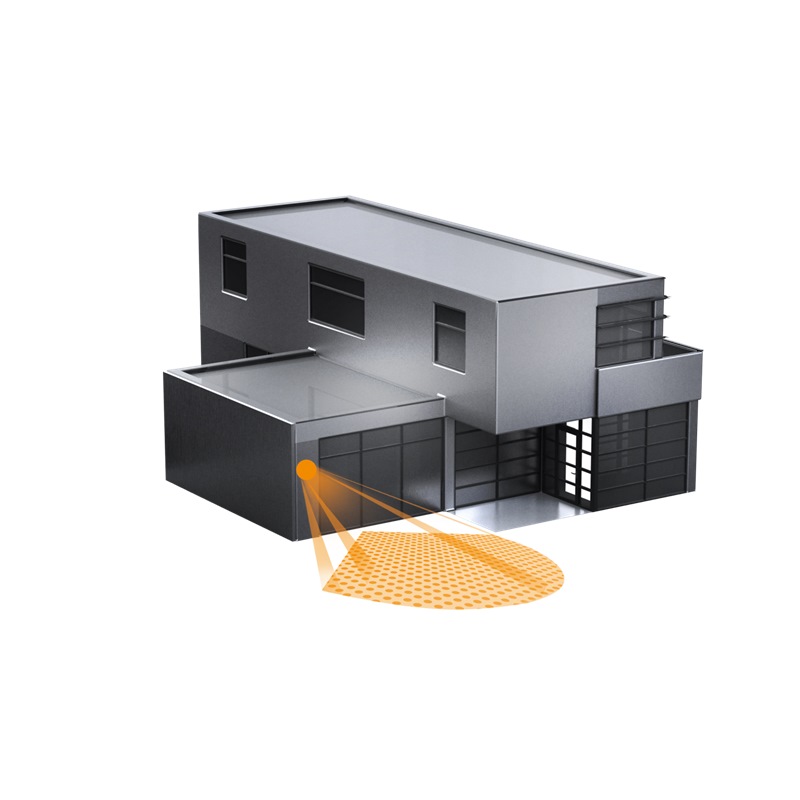

160° with 40° angle of aperture
|
Capability of masking out individual segments
|
Yes
|
|
|
40 °
|
|
|
70 °
|
|
|
12 m max.
|
|
|
5 detection levels
|
| |
260 switching zones |
Response value luminosity
|
2-2000 lx
|
Teach-function for response value luminosity
|
No
|
|
|
8 sec. - 35 min.
|
Degree of protection (IP)
|
IP54
|
